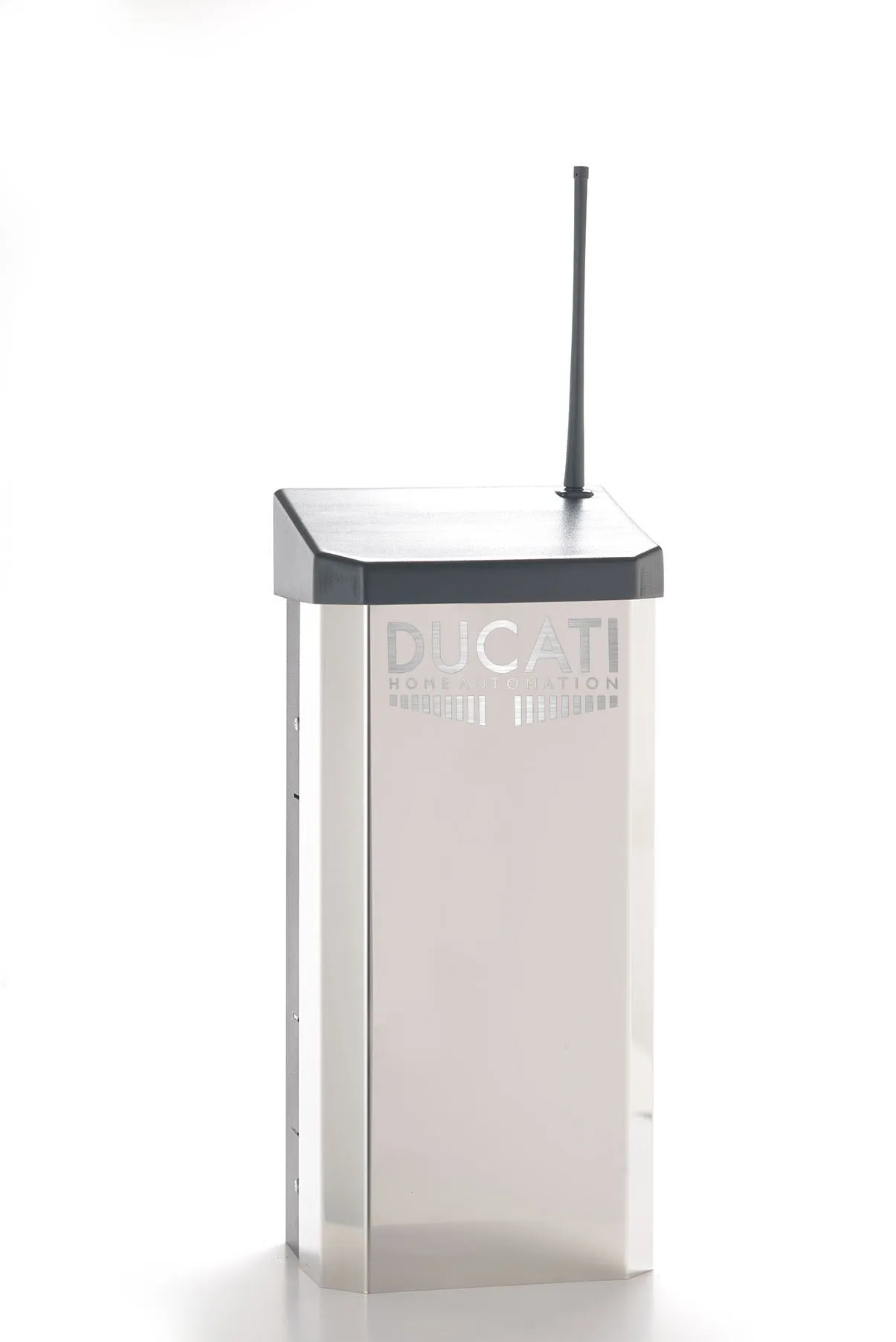

Luxurious Stainless steel control box for swing gate openers with advanced features and easy adjustment

2 versions availables: 12V or 24V featuring quick opening of your door!

Ideal for residential & commercial use

Ensures 100% autonomous use even  where AC power is unavailable

DUCOSOL Technology

Versatile, operates by 3 type of power supply

• A.C. 110/230V 60/50Hz
• By emergency battery
• By solar panel

Highly reliable as featured with Ducati's low consumption technology

DUCOSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition.  Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!

DUCO FAST technology (24V Version)

Quick closing and opening. Open your door faster than ever! powerful & reliable 24V high speed motors faster than ever. ensures faster opening and closing of your door.The perfect answer where rapid manoeuvres are required, ensuring the shortest standing time and the maximum safety: for urban high-traffic area or the maximum security in elegant residential environments, for prompt action where rapid intervention is needed.

SOFT STOP

The opener stops in both directions decreasing the speed and avoiding unwished banging closing. This prevent from usury and ensure long life to your opener and door. This function prevents the door banging closing.

ASR (Automatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured

DUCO SAFE

obstacle detection safety system guarantees maximal safety of use to your family

• Comes with toroidal transformer, electronic board CTH48 featuring DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable).
• On board solar panel & battery charge management.

MOTOR COMPATIBILITY

• standard 12V version is compatible with all DUCATI's 12V actuators
• special POWERFUL 24V version is compatible with all DUCATI's 24V actuators.
• Ideal for heavy duty  big and heavy gates

ACCESSORIES COMPATIBILITY:

• DUCATI's rolling coded remote controls,
• key switch NO ( normally open contact)
• special low consumption 12V photocells model 7120 ( required if powered by solar panel)
• standard 12V photocells
• 12V bulb blinker
• 12V min. 10W solar module & 7A 12V battery ( 12V version)  or 24V 20W solar module & 2 x 5A 12V battery ( 24V version)
• electric lock with booster
• additional external radio receiver for up to 100 codes
• MPBAT battery charger with european plug & charge control

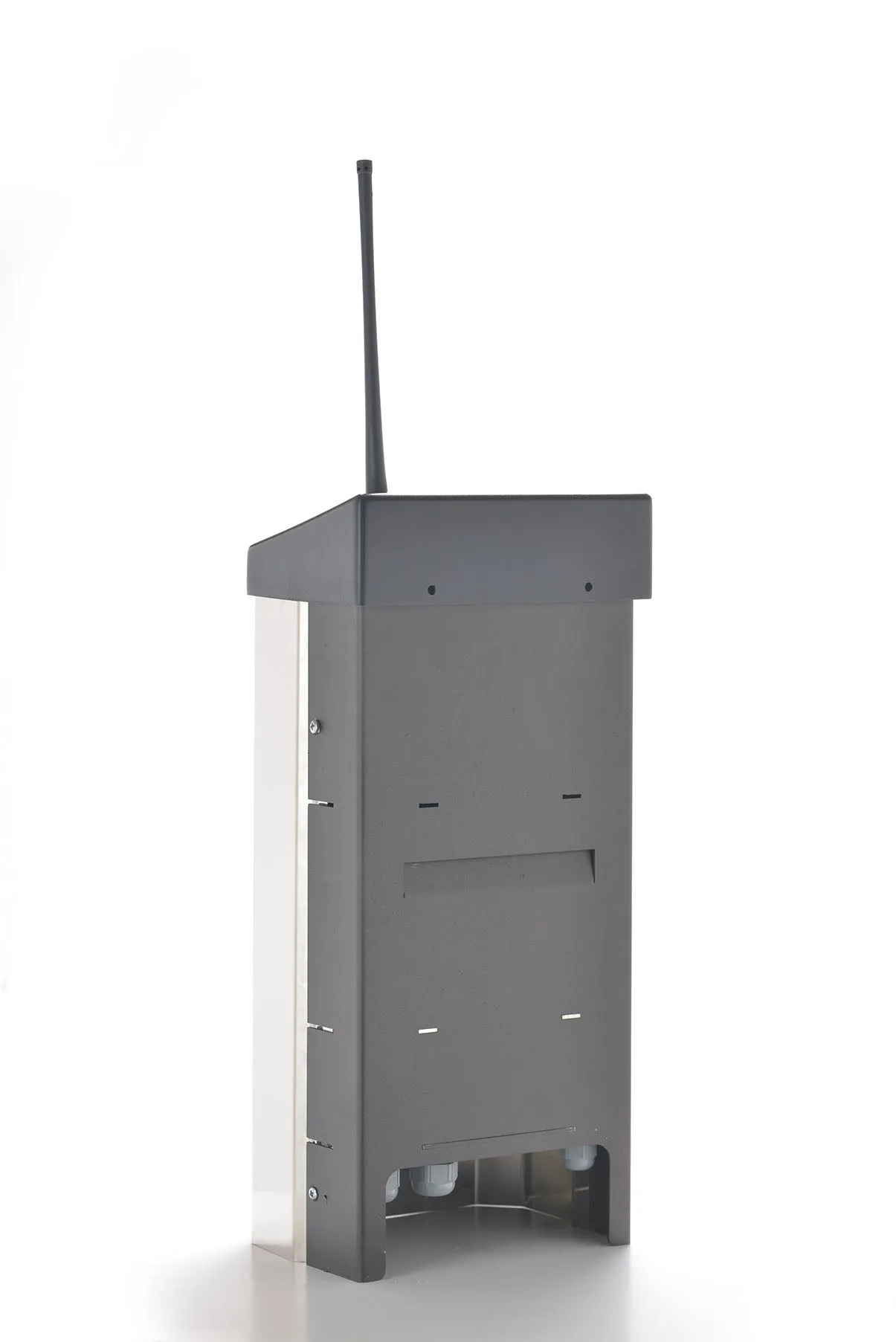

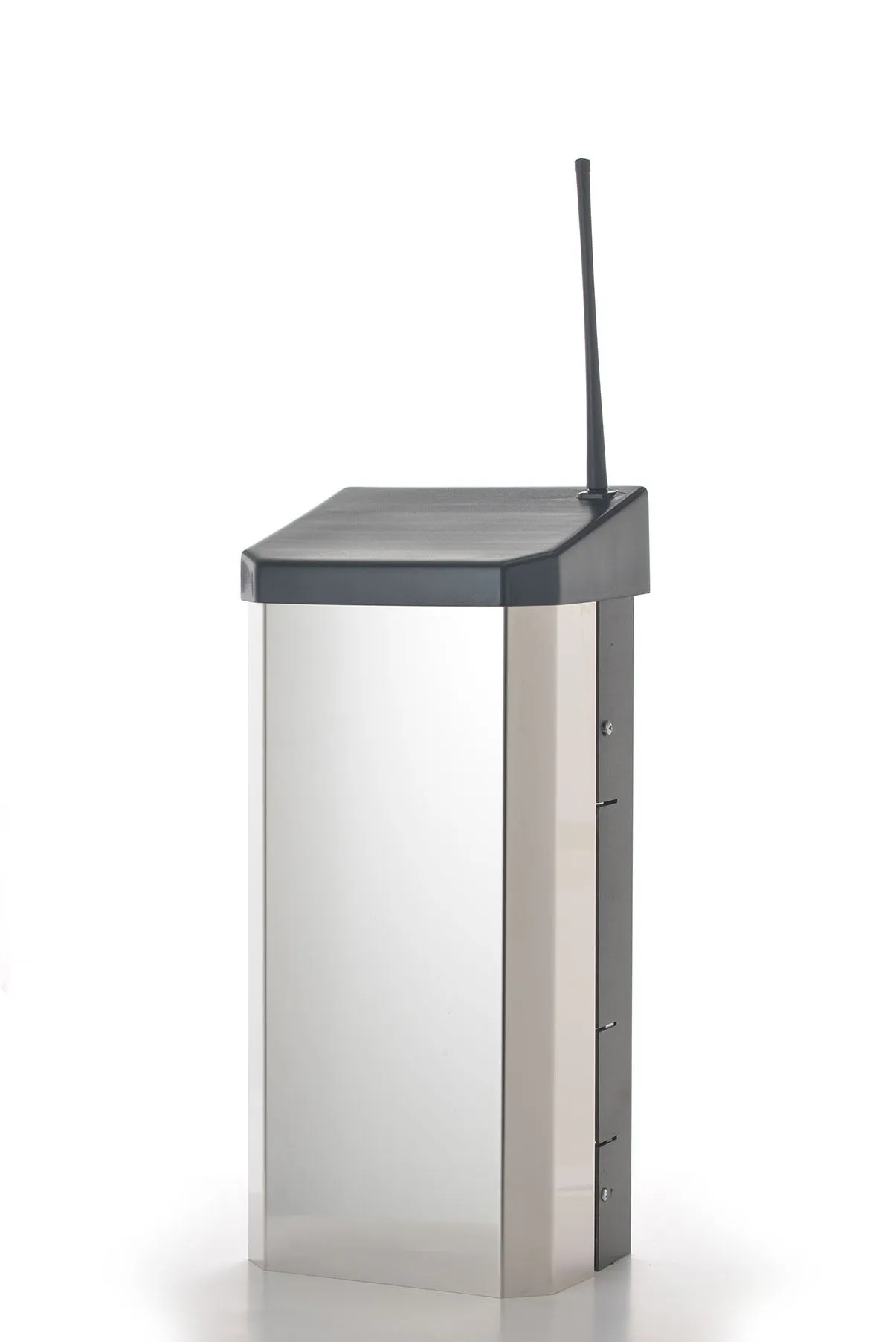

• Prestigious case made of Stainless steel. A luxurious control box for highest demands
• Quick closing and opening. Open your door faster than ever with 24V version!
• Double speed with SOFT STOP
• SOFT STOP  adjustment: you can postpose/anticipate the slowdown phase
• Obstacle detection sensitivity adjustment
• Inverse movement by obstacle detection while closing
• Integrated battery charger on board: just ready for connection to a 12V emergency battery. In case of power failure works autonomously up to 5 days
• Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
• Compatible to all standard 12V batteries & standard 12V solar modules.  No  expensive customized unit needed (24V solar panel and 2 x 12 v batteries required for 24V version)
• Control unit with integrated battery housing compartment
• Low consumption technology: only 0,07W stand-by consumption!  Protect the environment, reduces waste of energy and  gives long lasting autonomy with battery /solar panel use
• Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
• Adjustable motor power/ obstacle detection sensitivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
• Ideal for a safe, quick and easy  installation: the system is electrocution risk-free.
• heavy duty opener: can work in continuous cycles  without overheating
• Adjustment of the time lag between the two doors
• Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) can be controlled by remote control or wired control.
• Possibility of connecting an external timed courtesy light (example: garden light)
• The gate is  automatically locked in closed position ( irreversibile system).
• Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 12V electric-lock ( Booster required)
• Made in Italy - All components are manufactured in the company to warranty high  quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries
• Easy  self-storing  of the remotes controls by pushing one button
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

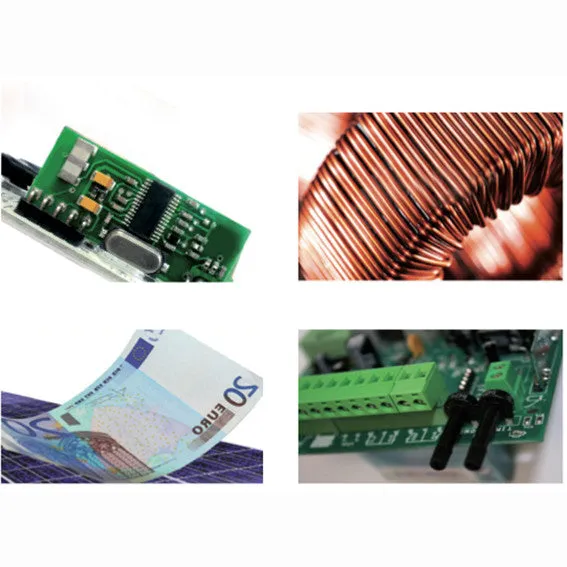

• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

CTH48 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)
