Description

Ducati's entry-level package. The most uncomplicated gate opener.

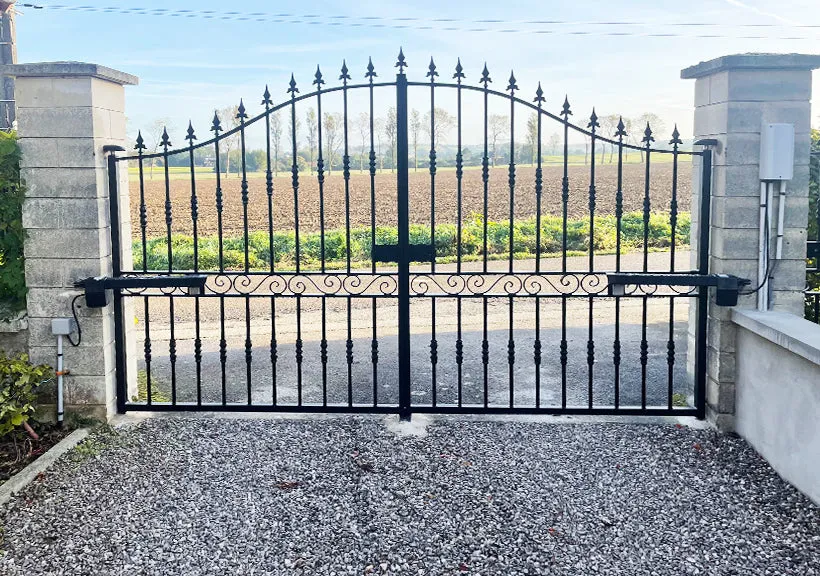

Double wing swing gate up to 2 x 1,8m/ 6ft each wing (Total gate length up to 4m/13ft)

• Ducati's modern design DC gate opener
• Featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
• For those who desire a very uncomplicated gate opener, easy to be installed
• Ideal for  double wing swing gate

Kit Contents

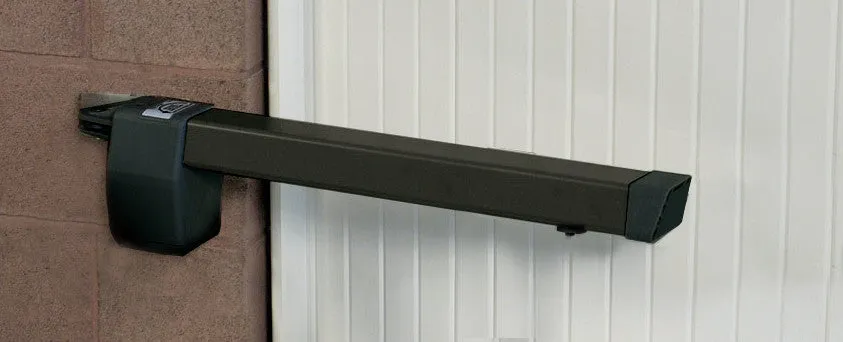

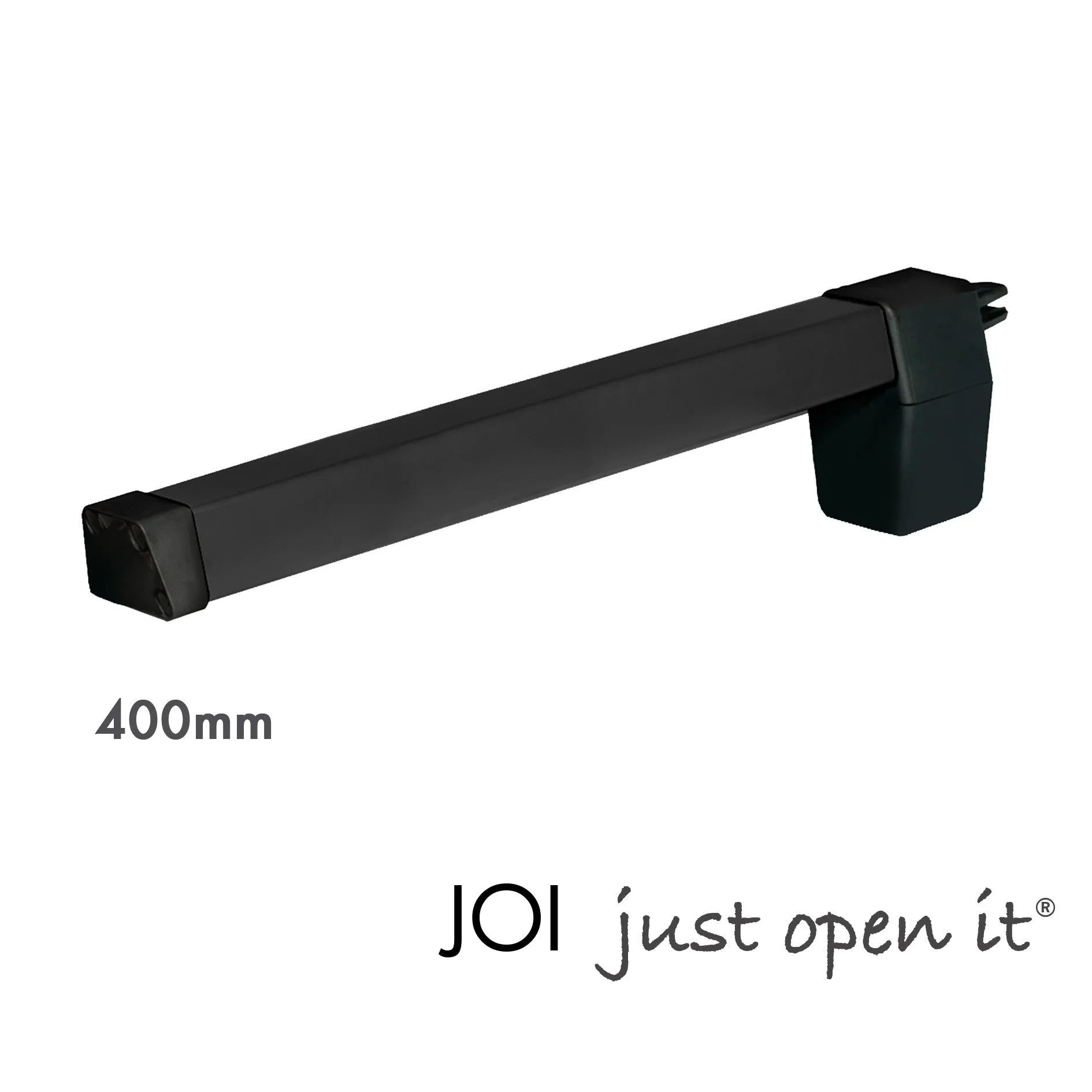

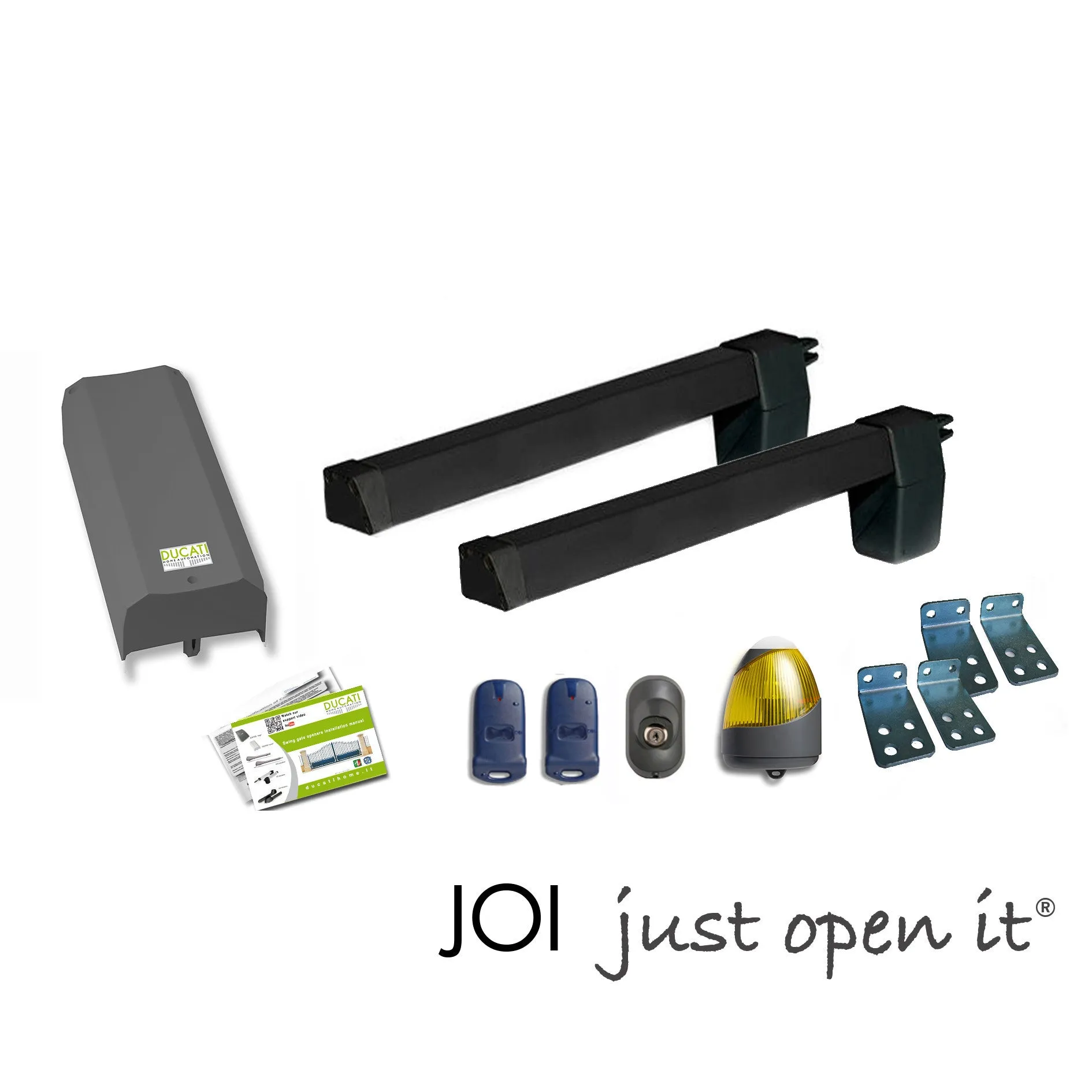

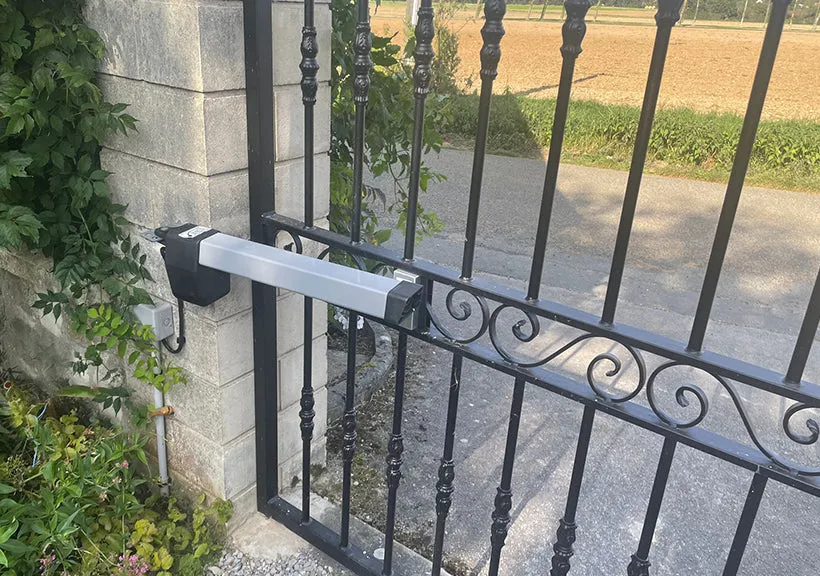

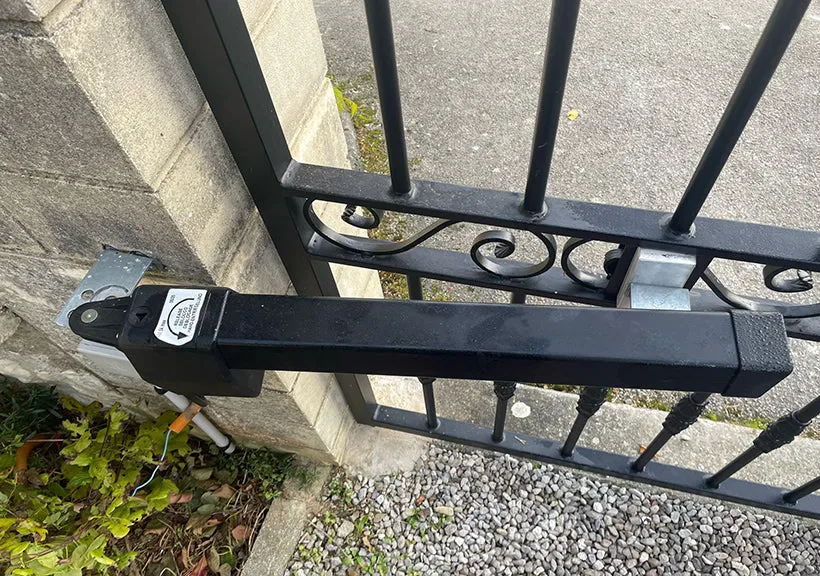

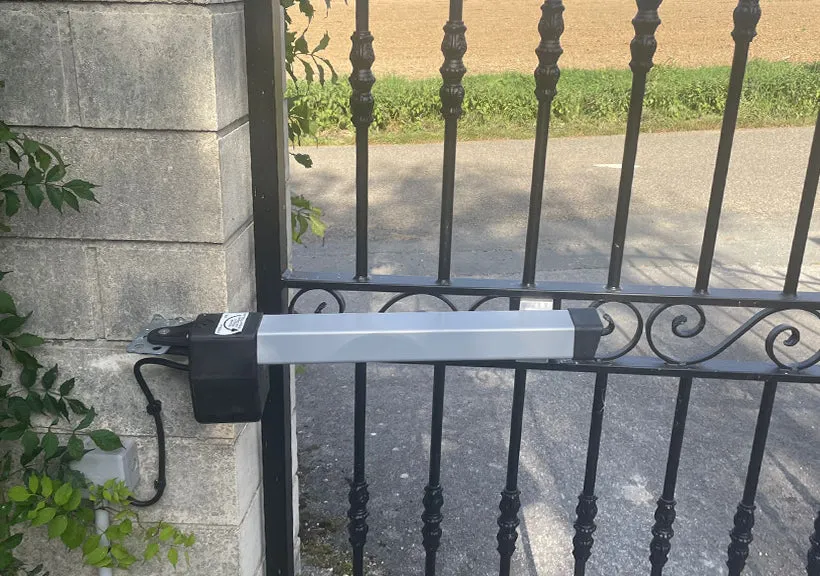

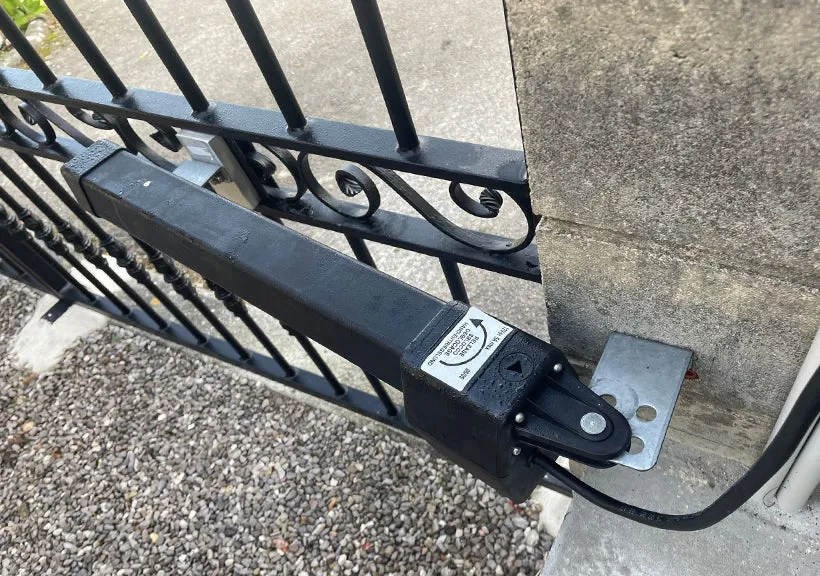

• 2x HC418 - 400mm stroke 12V  electromecanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

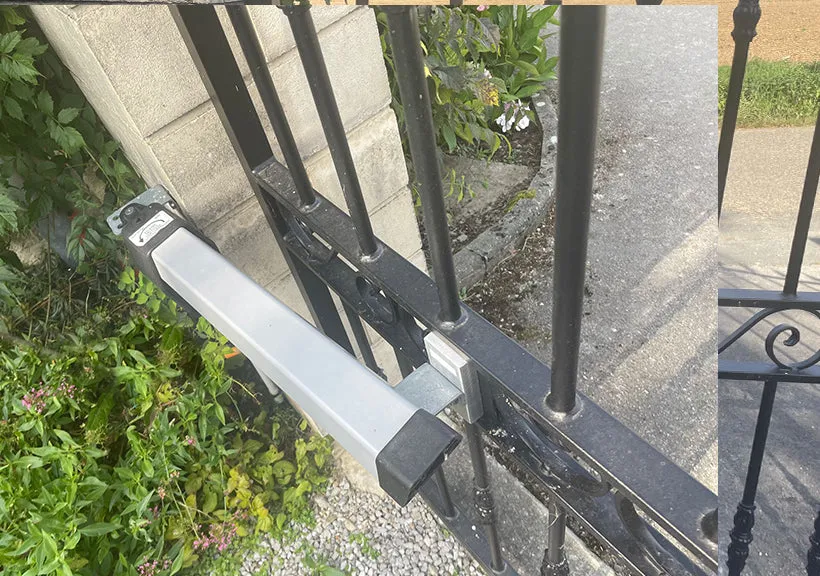

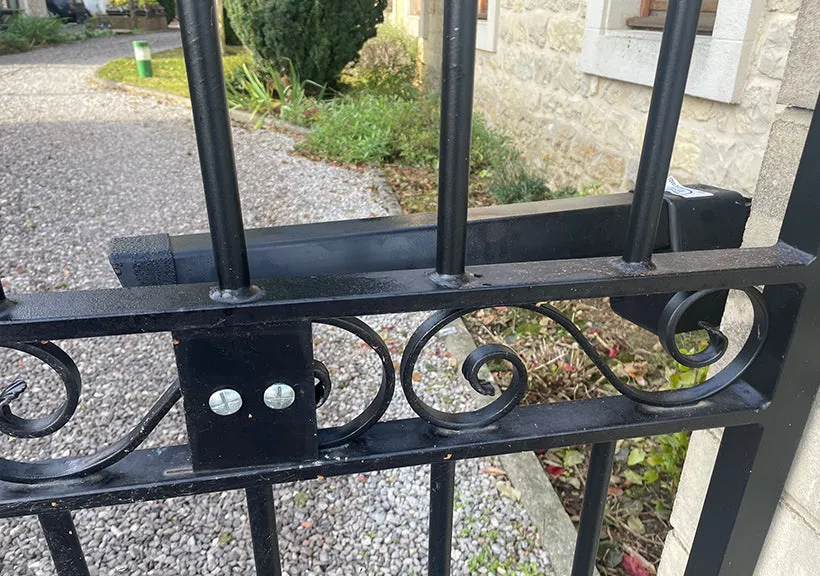

• set of actuator's fixing brackets

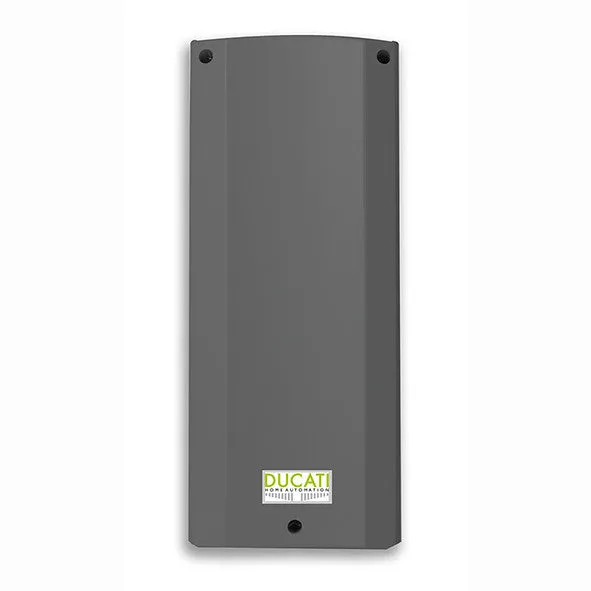

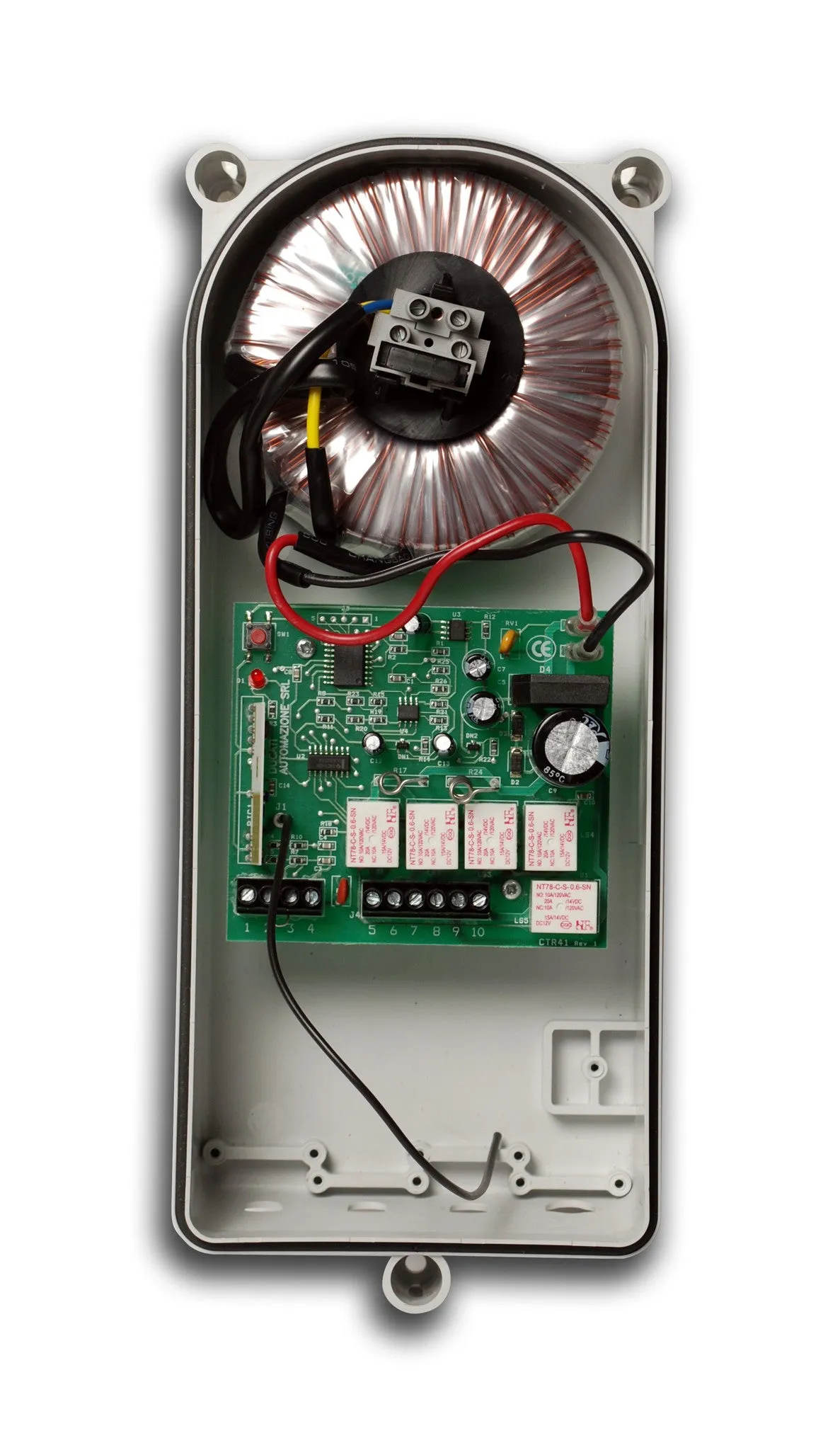

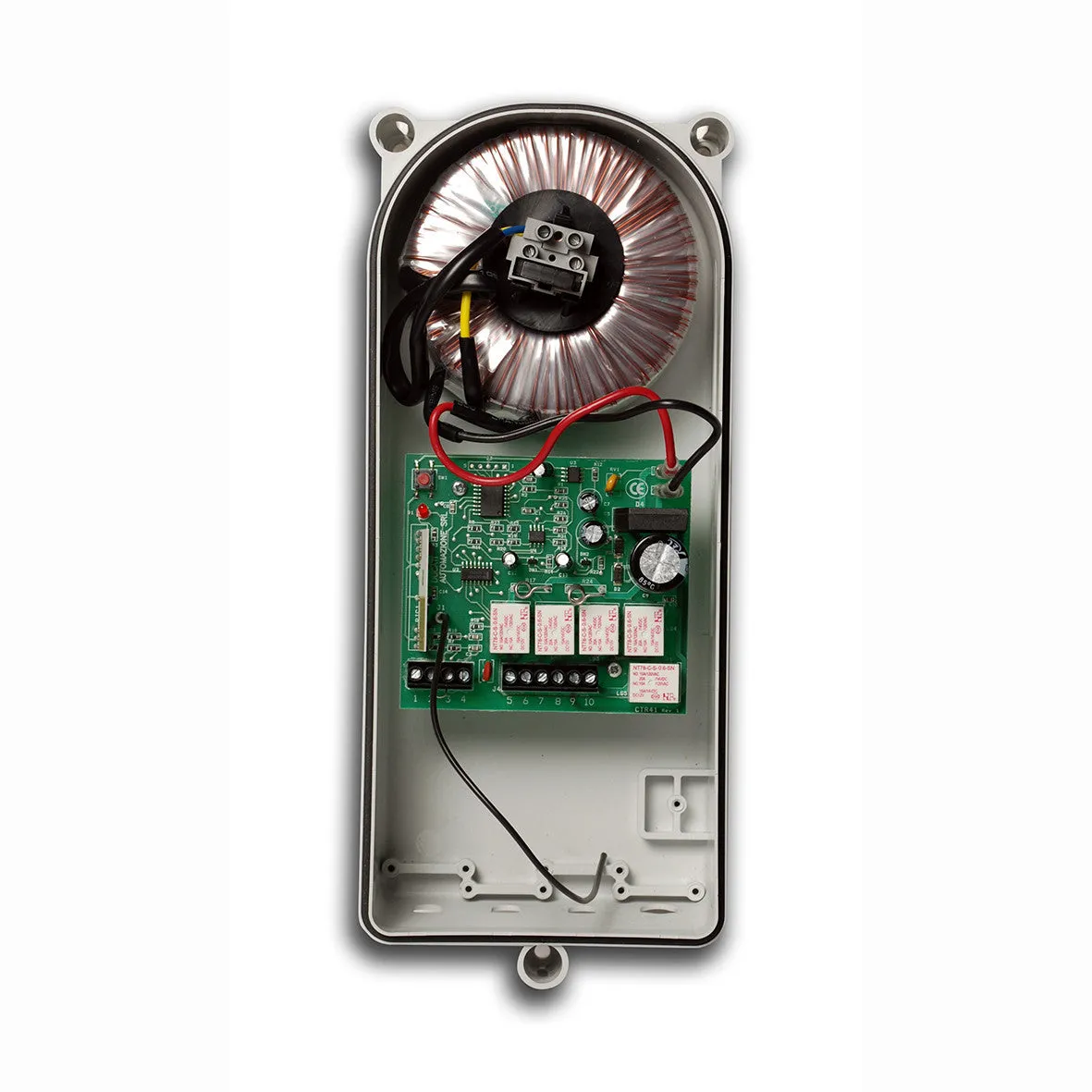

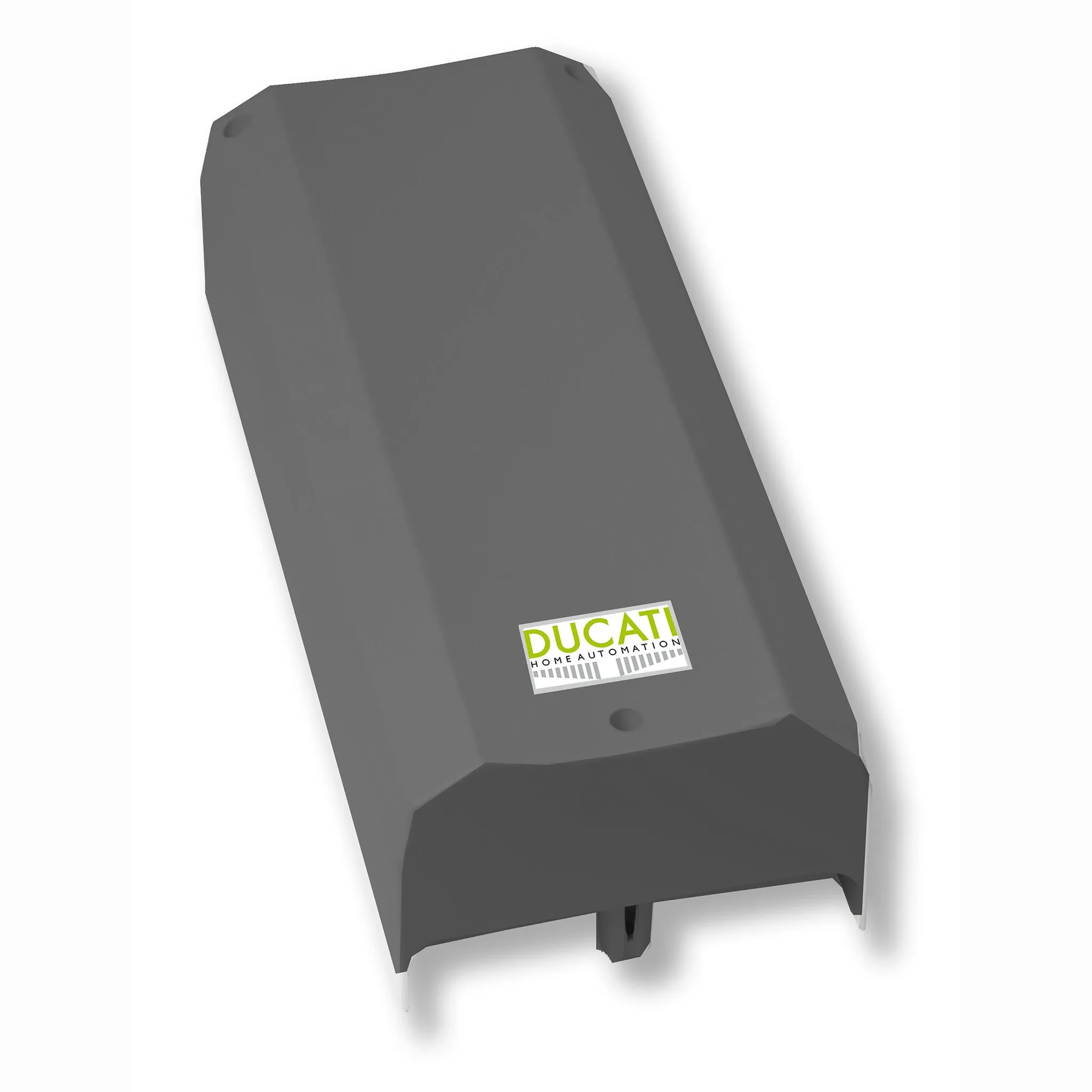

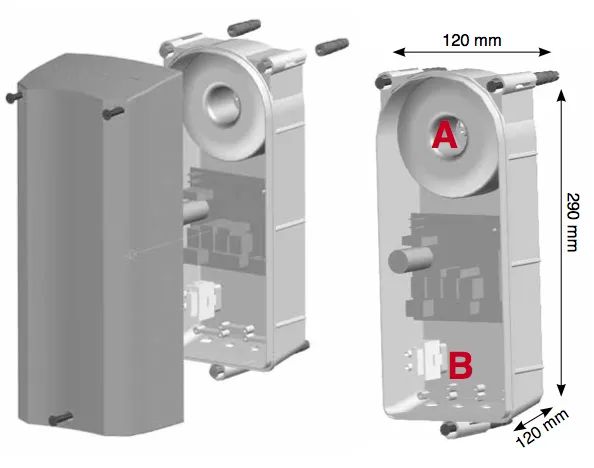

• 1x KONTROL 7851 - small control box with electronic board CTH41, toroidal transformer, integrated radio receiver & antenna cable

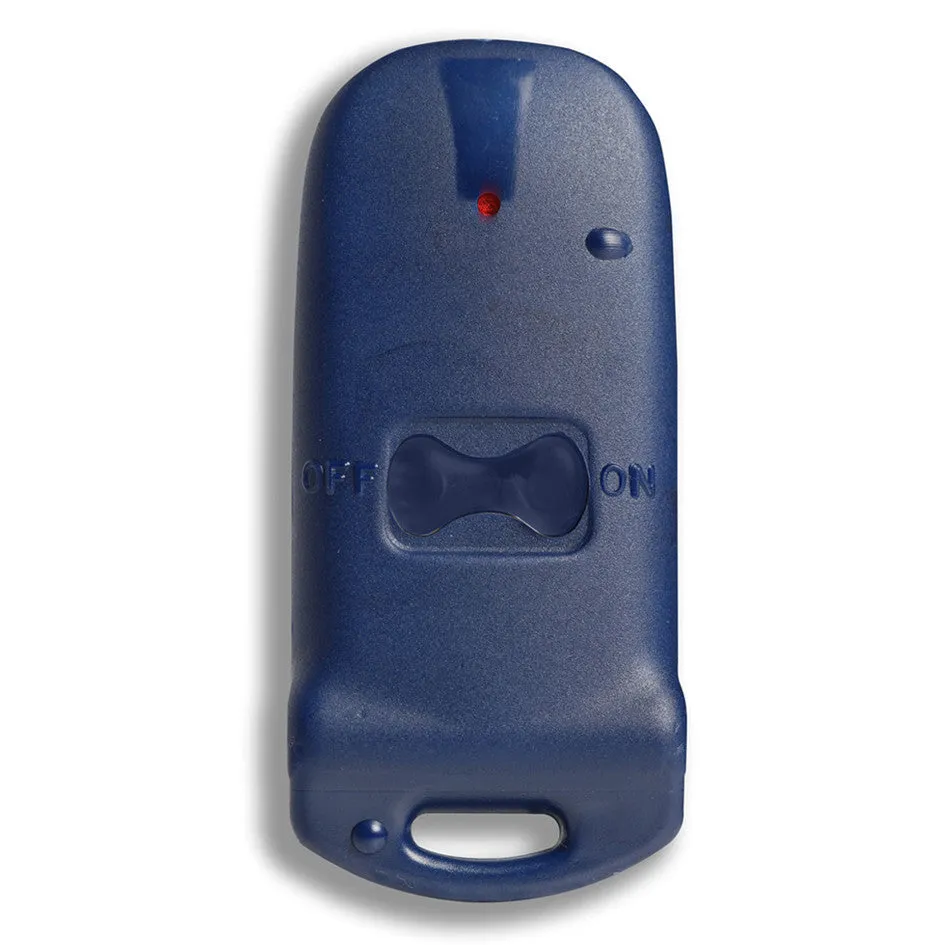

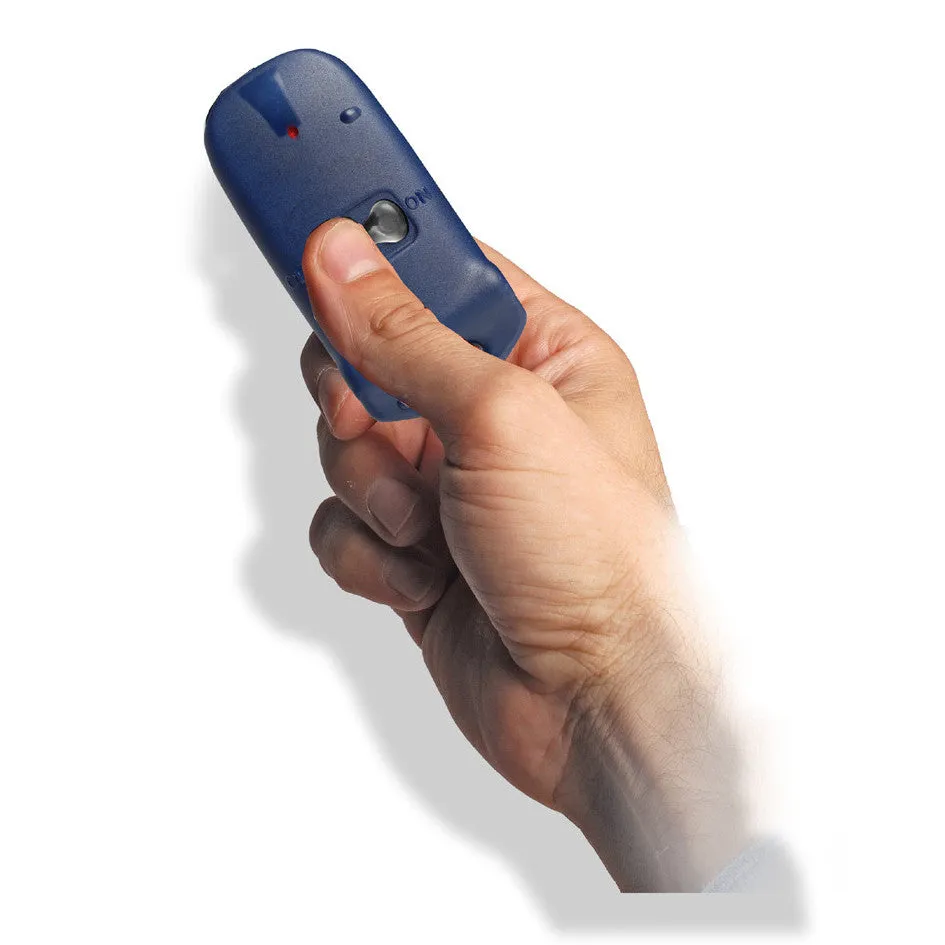

• 2x 6203 R - 2 buttons 433,92 Mhz  rolling coded remote controls

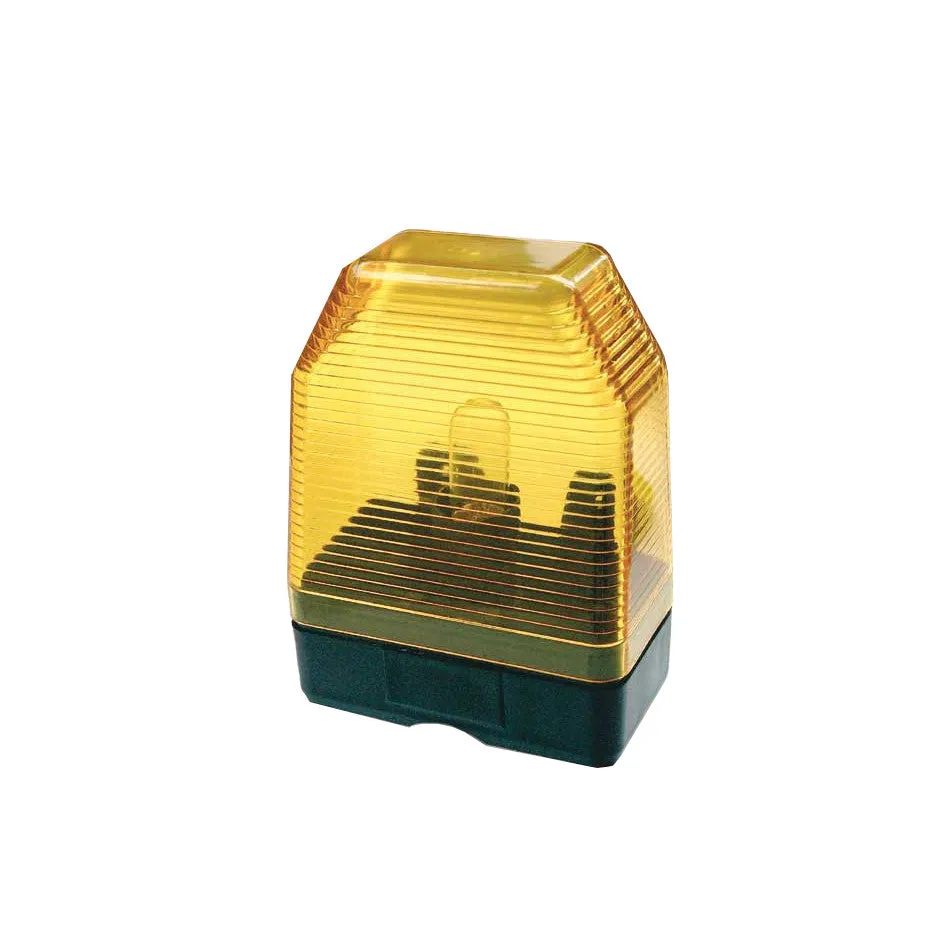

• 1x HC7500 - blinking light 12V

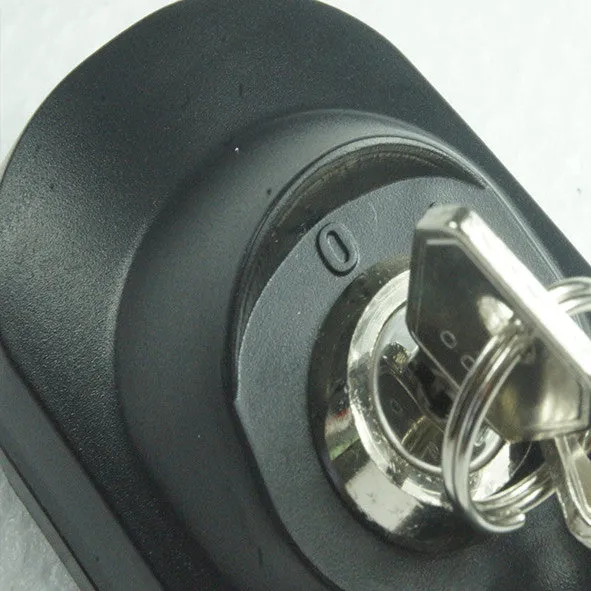

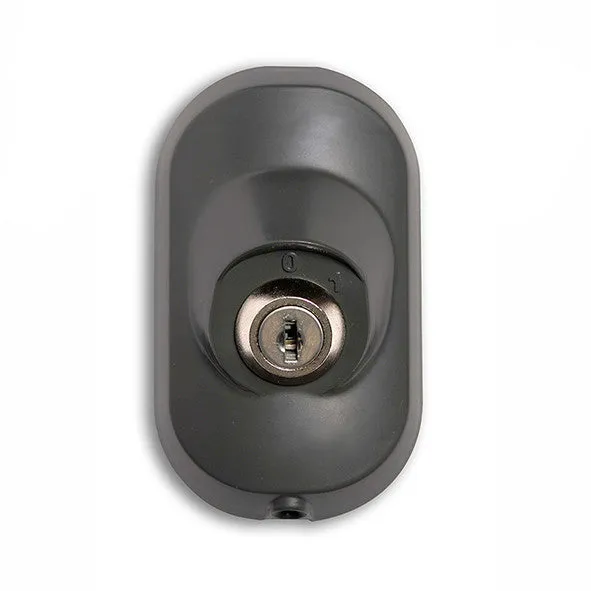

• 1x SW5000 - key switch
• 1x key for manual emergency release
• 1x instruction manual

Features

This classic DUCATI  "vintage" design ENTRY LEVEL gate operator features simples and basic functions for an easy installation with no adjustments needed.

For those who  do not require advanced settings but  want a safe, reliable simple gate opener for small gates:

• Highly reliable opener: can work in continuous cycles  without overheating

• Features 2 working mode options: step by step ( push to open & push to close) or automatic closing with fixed pause time 30 sec.

• Small control unit with integrated toroidal transformer,  simple electronic board with onboard radio receiver & antenna cable

• Easy  self-storing  of the remotes controls by pushing one button

•  - All components are manufactured in the company to warranty high quality and reliability.

• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.

• Quick and easy installation

• The gate is automatically locked in closed position (irreversibile system).

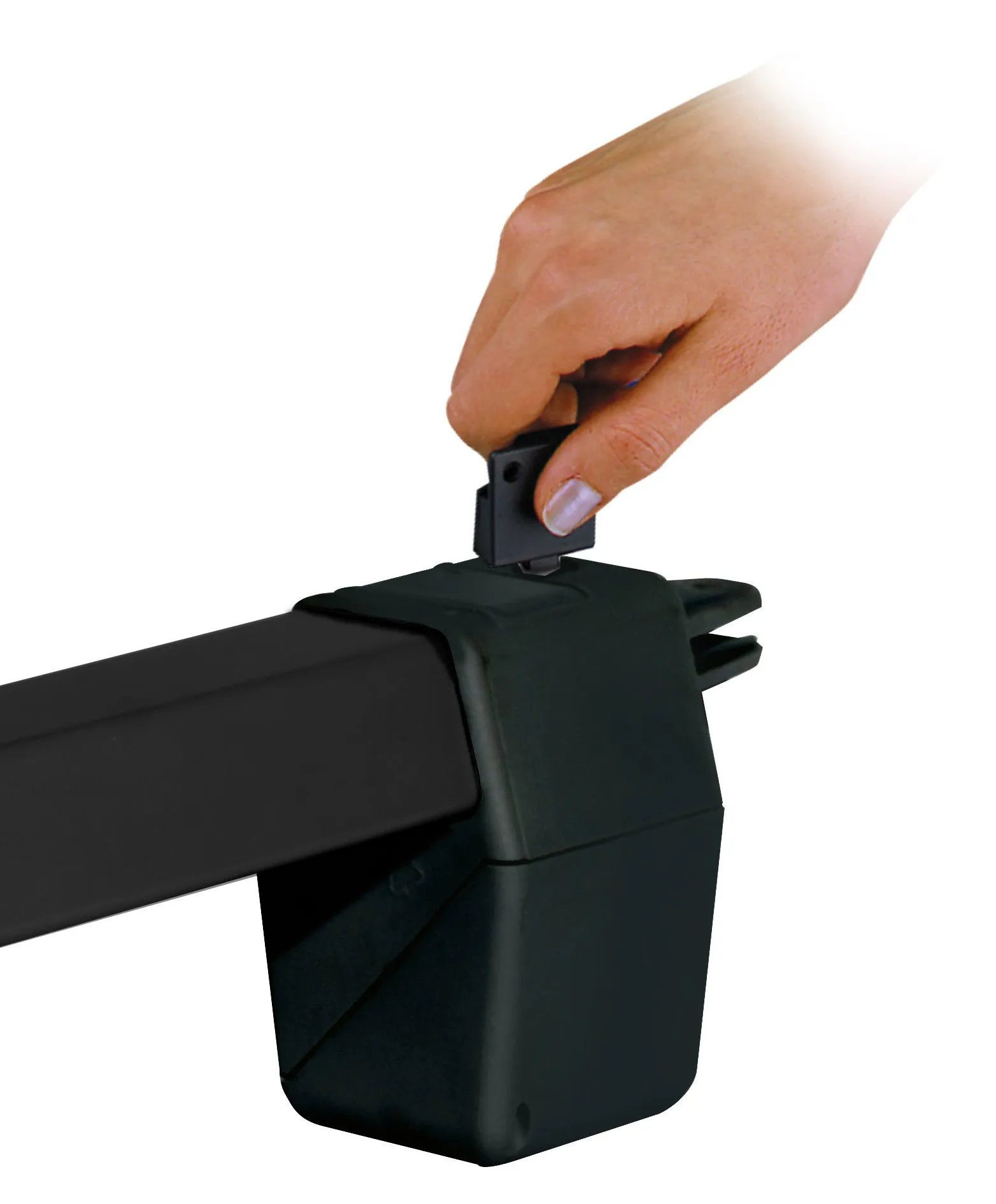

• Manual release system by universal triangular key

• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

•  is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

SELF LOCK TECHNOLOGY

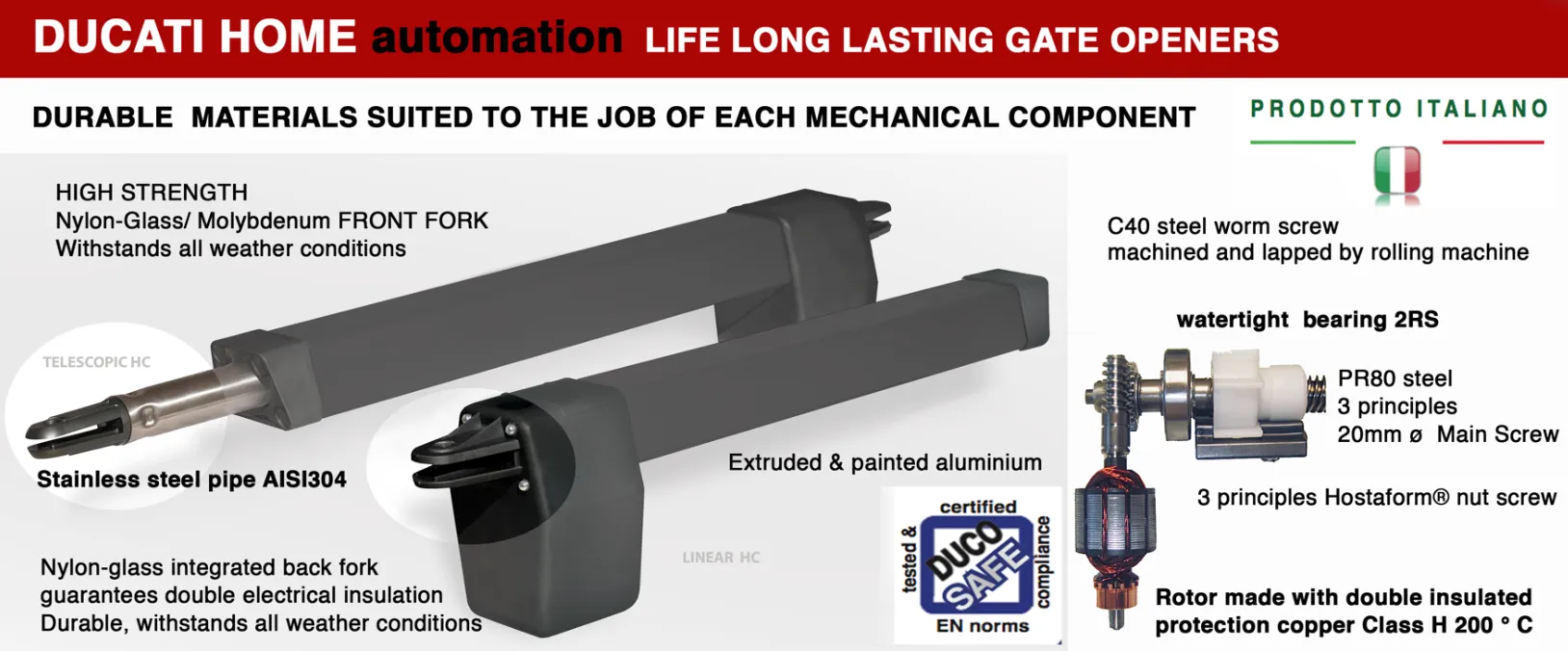

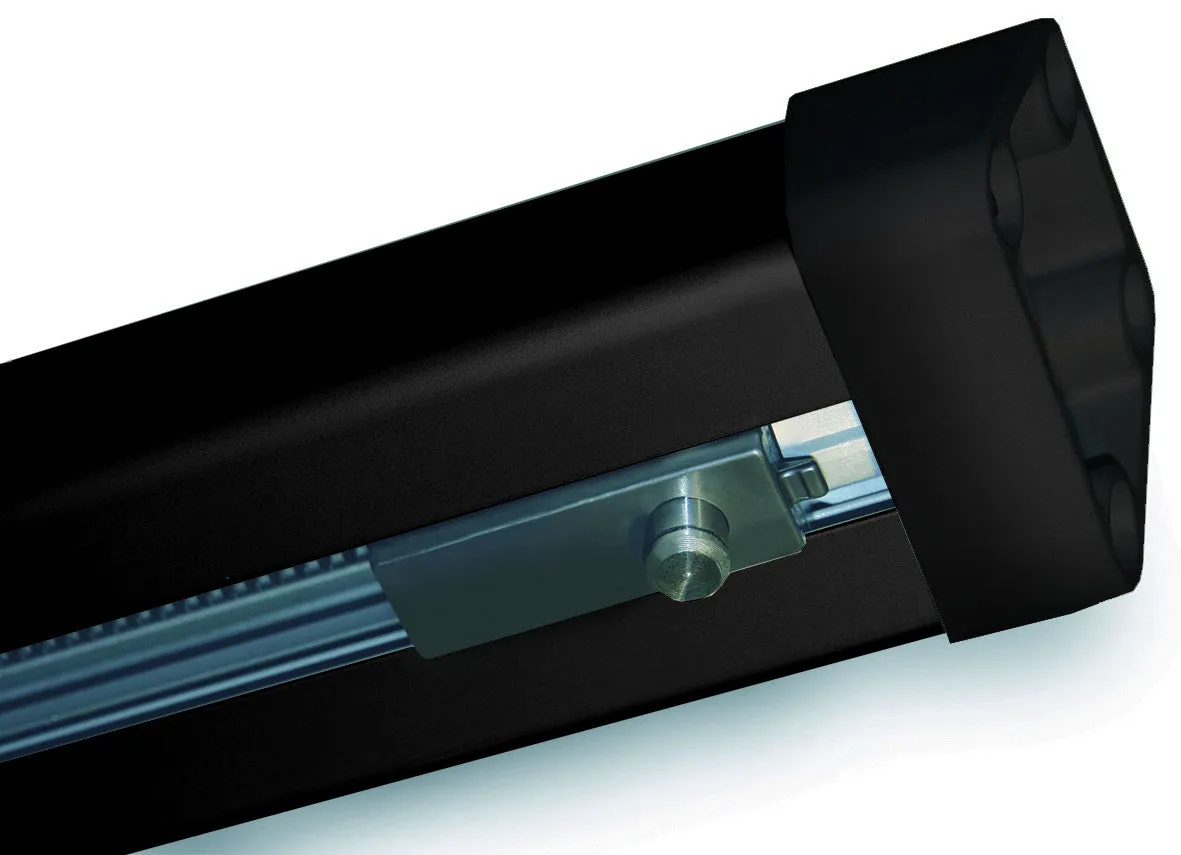

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

Technical data

Here Technical data

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL  ACTUATOR HC418

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC418 in "FC" version are featured with on-board mechanical limits for the open & closed  wing position.

CTH41 ELECTRONIC BOARD TECHNICAL DATA

Manual

to download the full  instruction manual

to  download the HC418 actuator's diagram

to download CTH41 board diagram

 remote control instructions
