Name: EVO 700T
SKU: 334301

Description

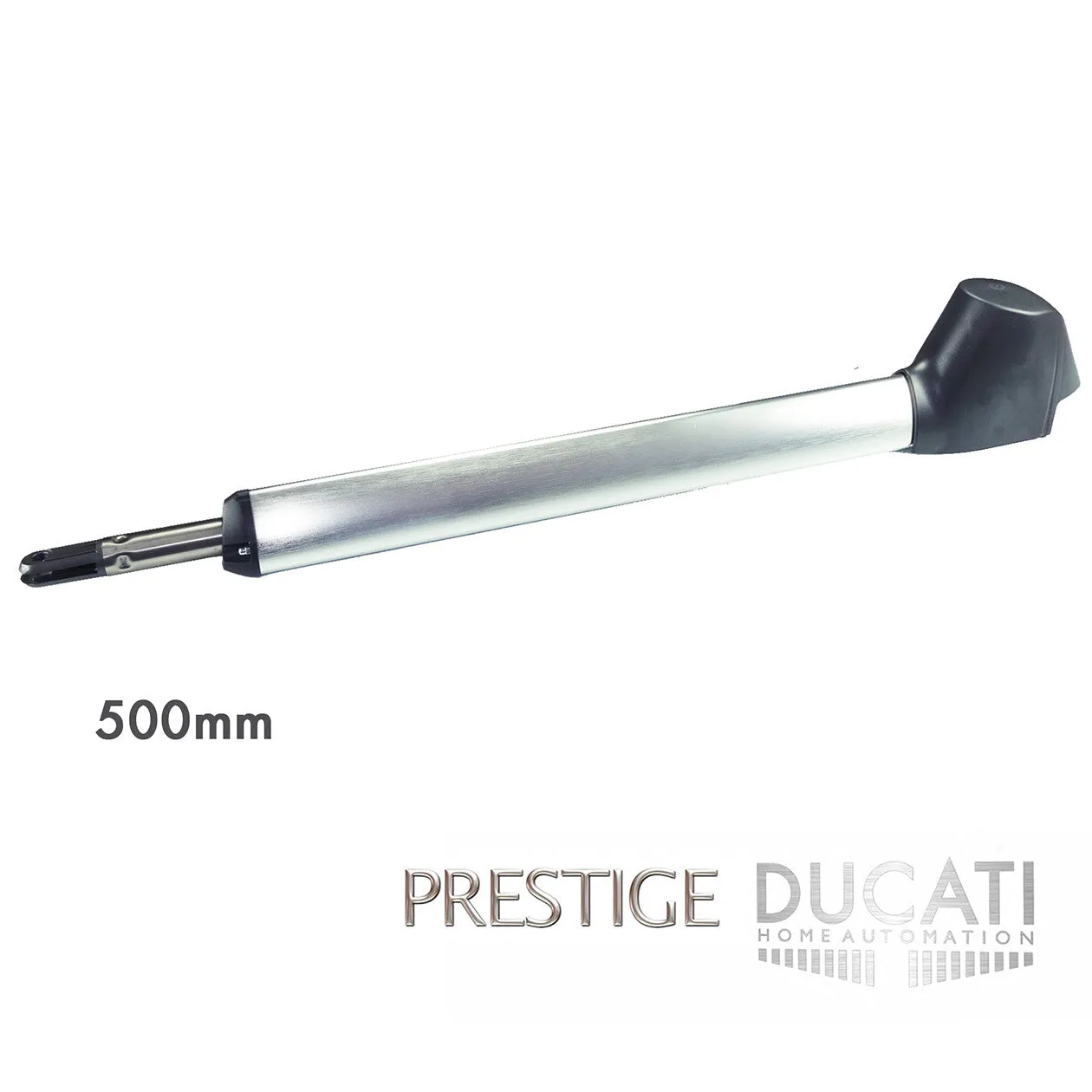

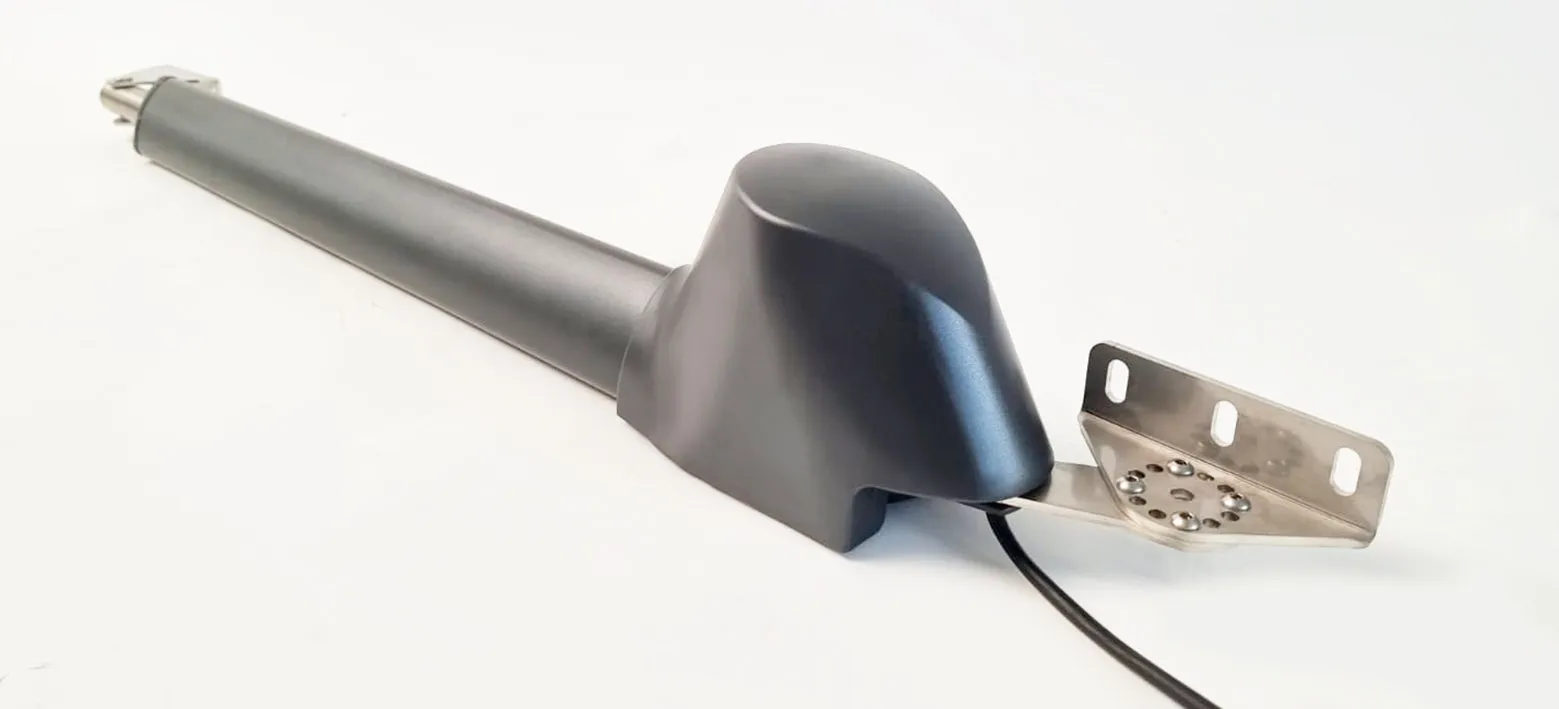

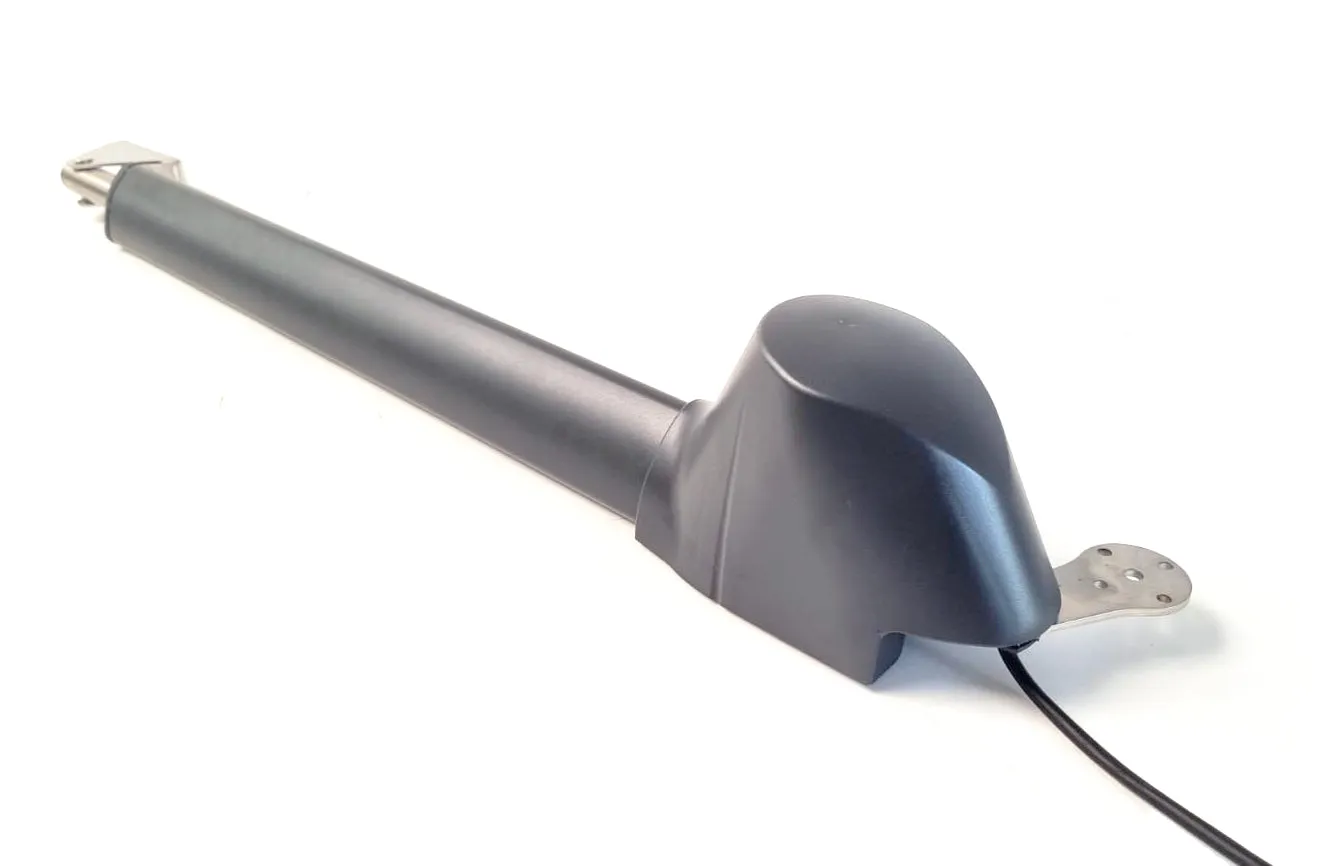

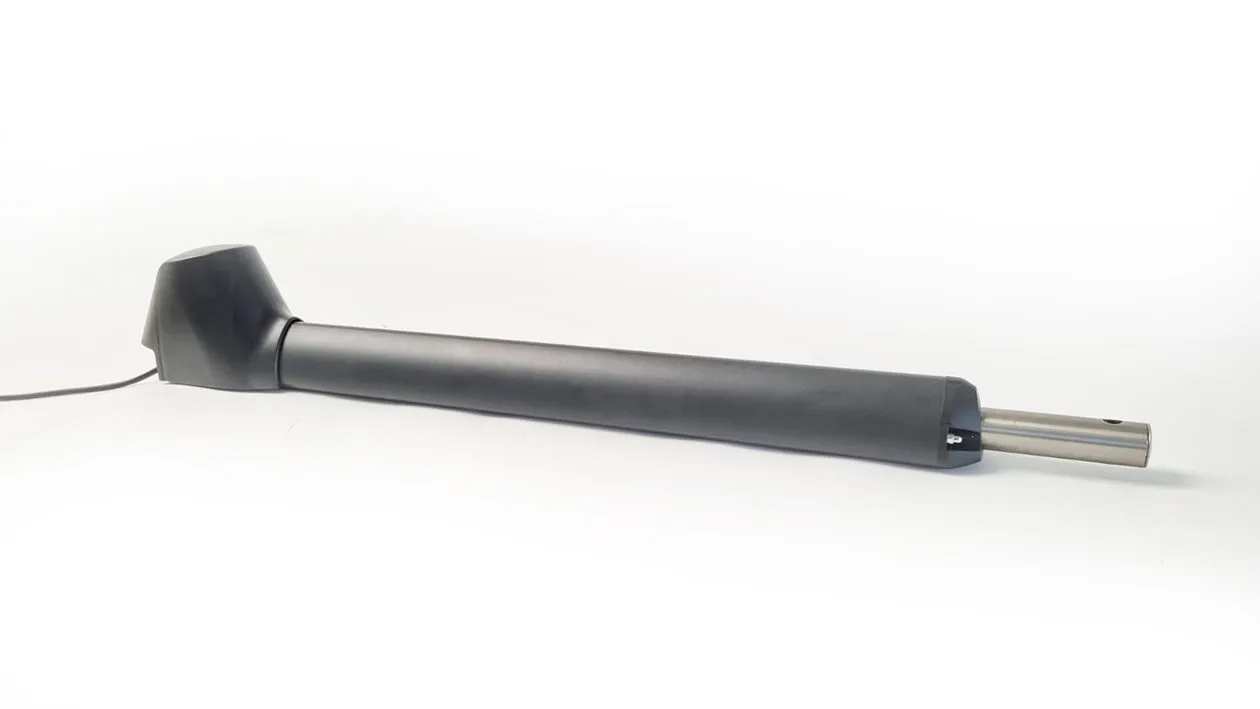

EVO 700 T Swing Gate TELESCOPIC actuator with 500mm stroke ideal for gates up to 5m /16 ft length each leaf.

12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP options)
Integrated limit stops are available for easier installation in "FC" version ( only for open position, while closed position of the gate still requires a stopper fixed to the ground)
Telescopic 500 mm stroke actuator is ideal to be installed on medium / big gates or large pillars

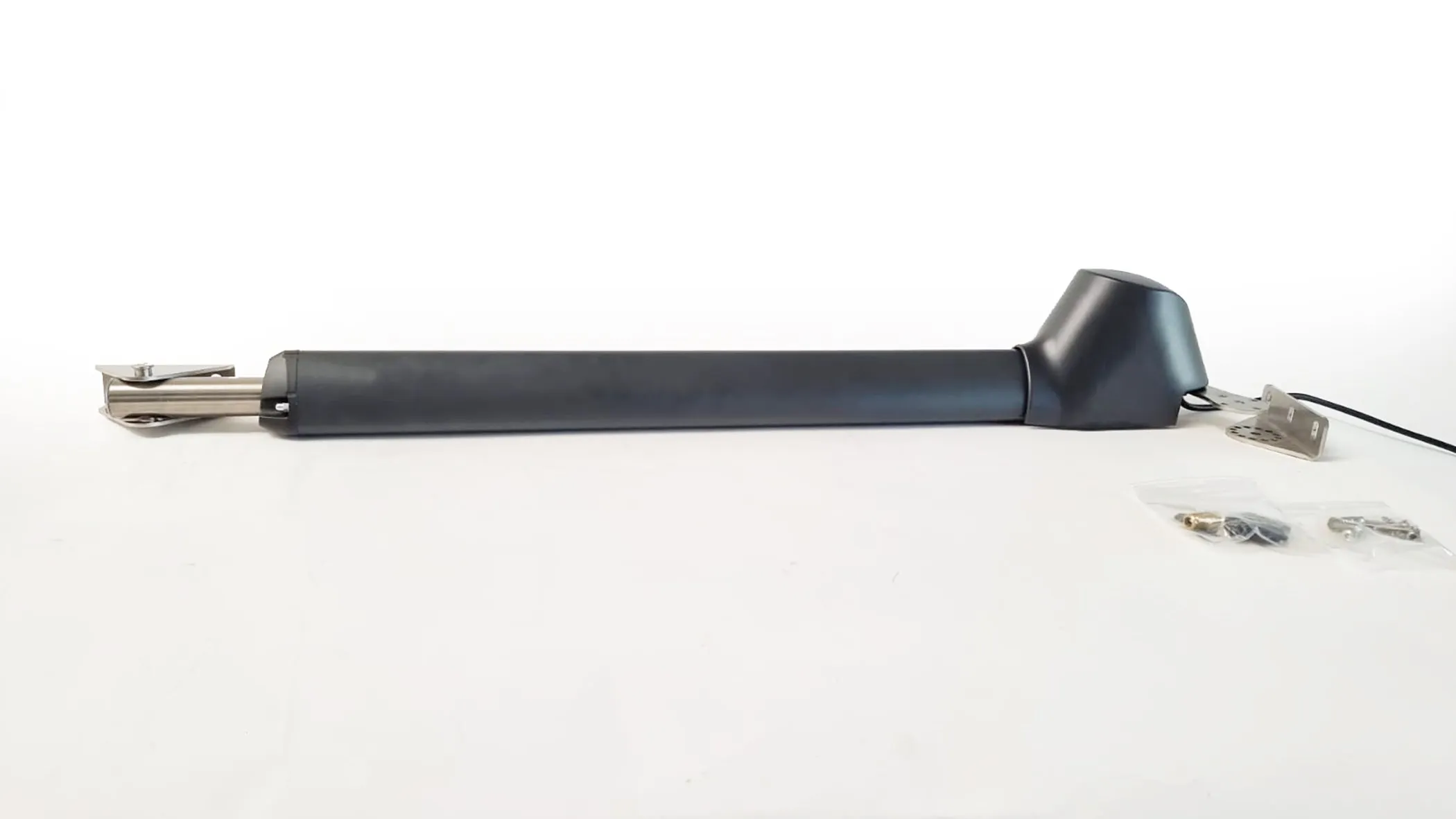

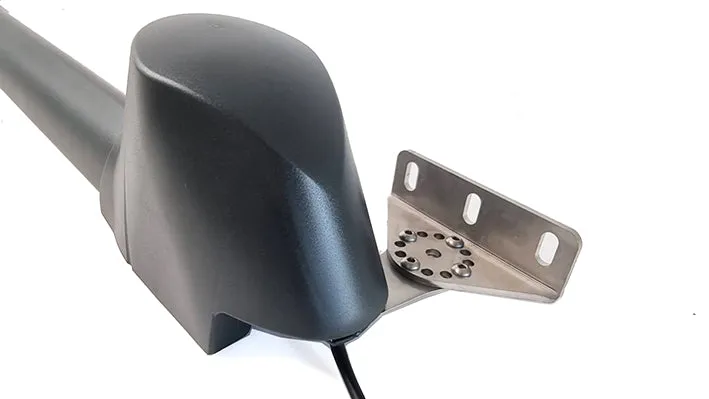

This electromechanical irreversible actuator comes with 1m outdoor use cable H05RN-F 2 x 1mmq; set of fixing brackets and unlocking key for emergency manual release

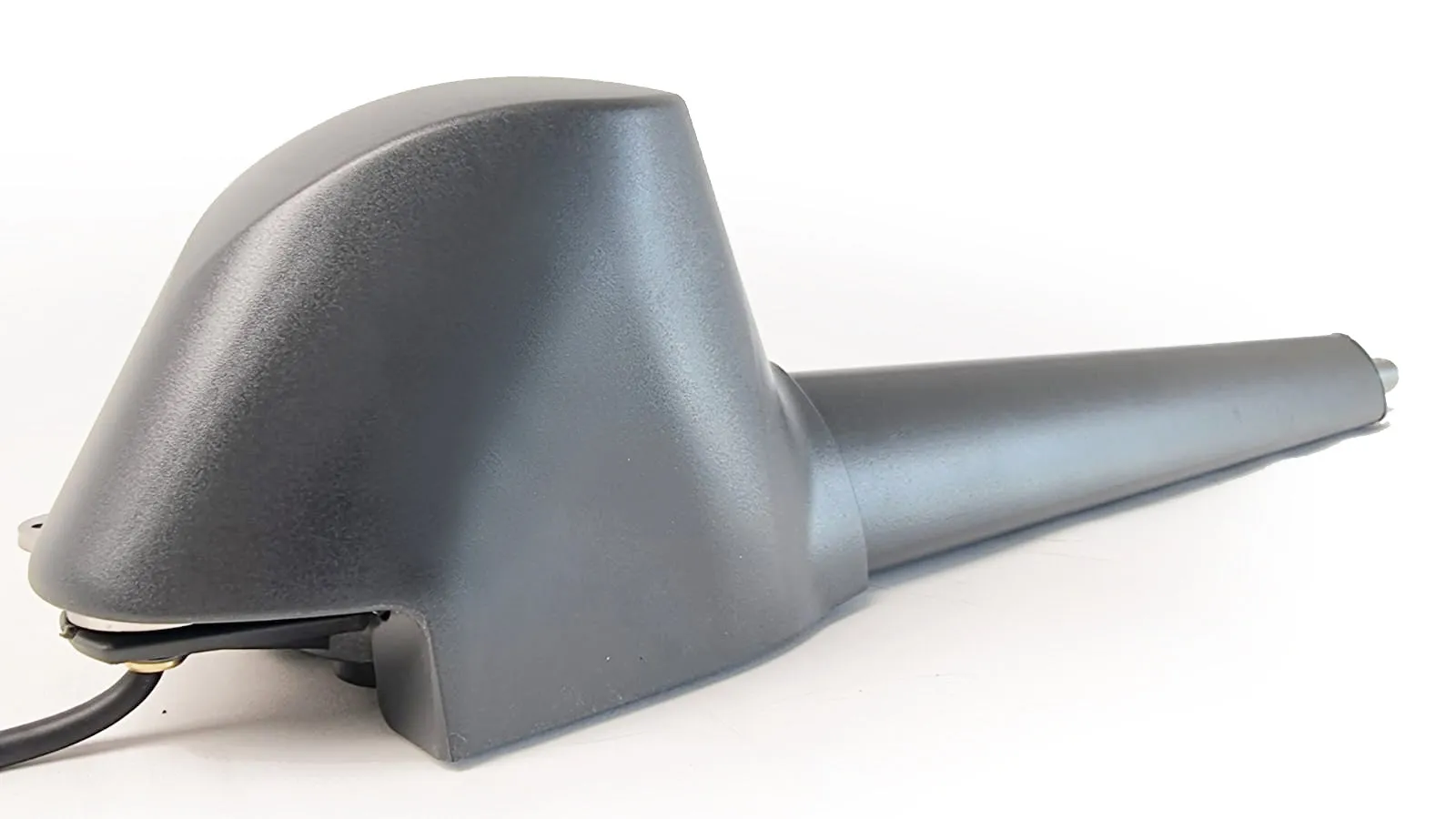

Massive motor-gear unit for reliable power transmission

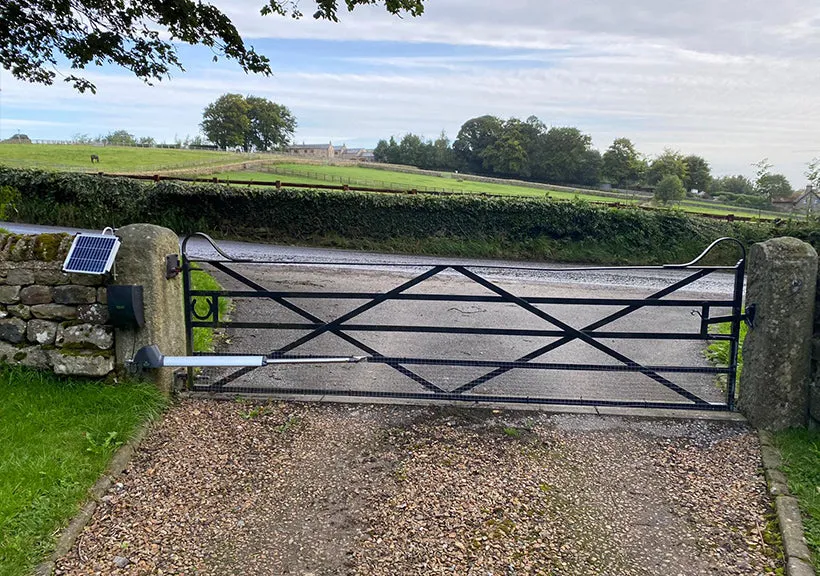

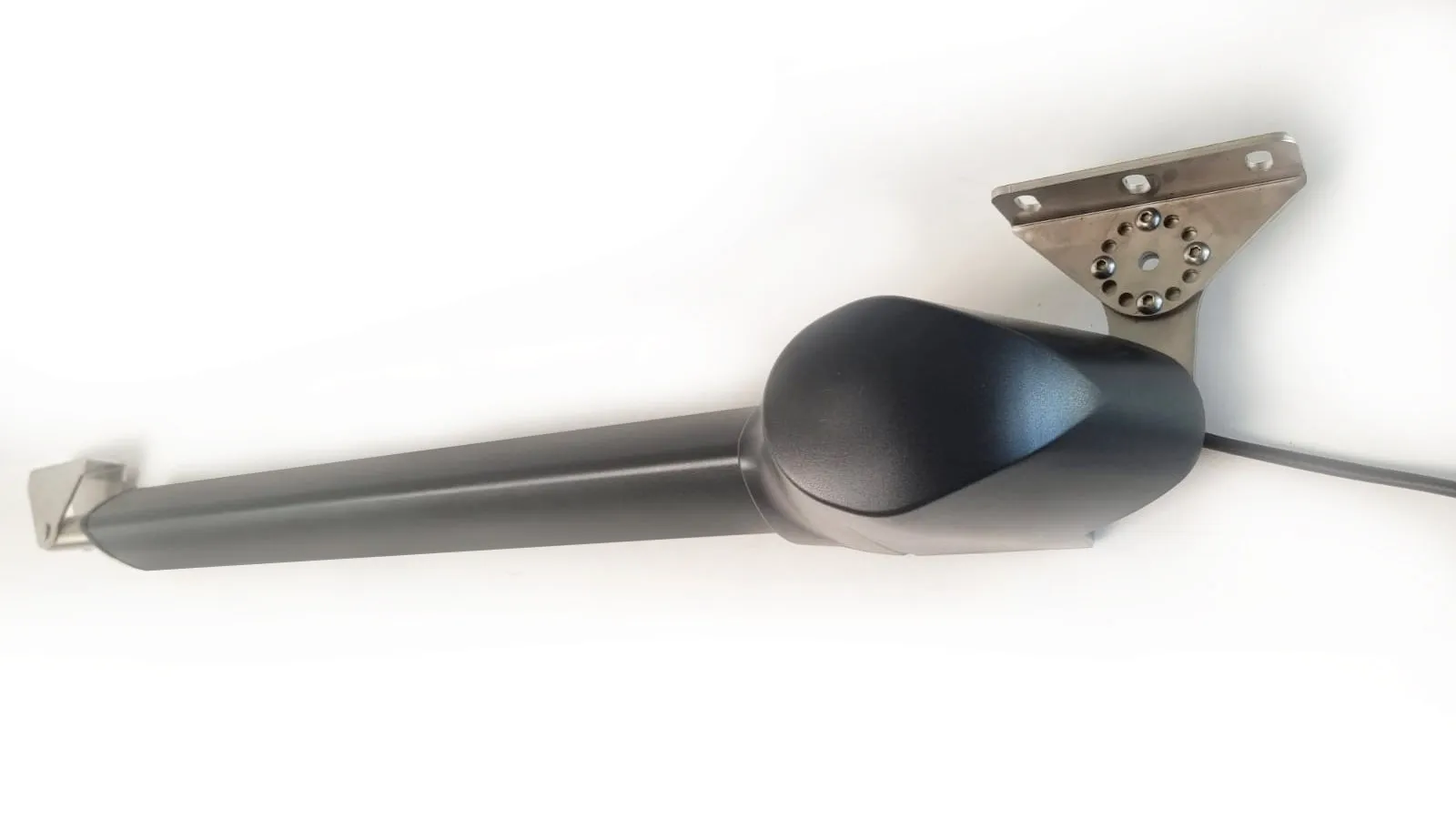

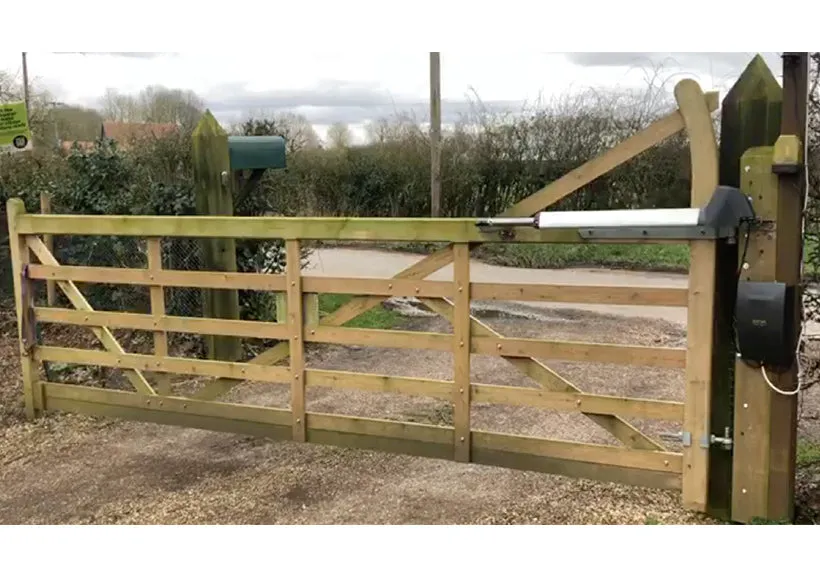

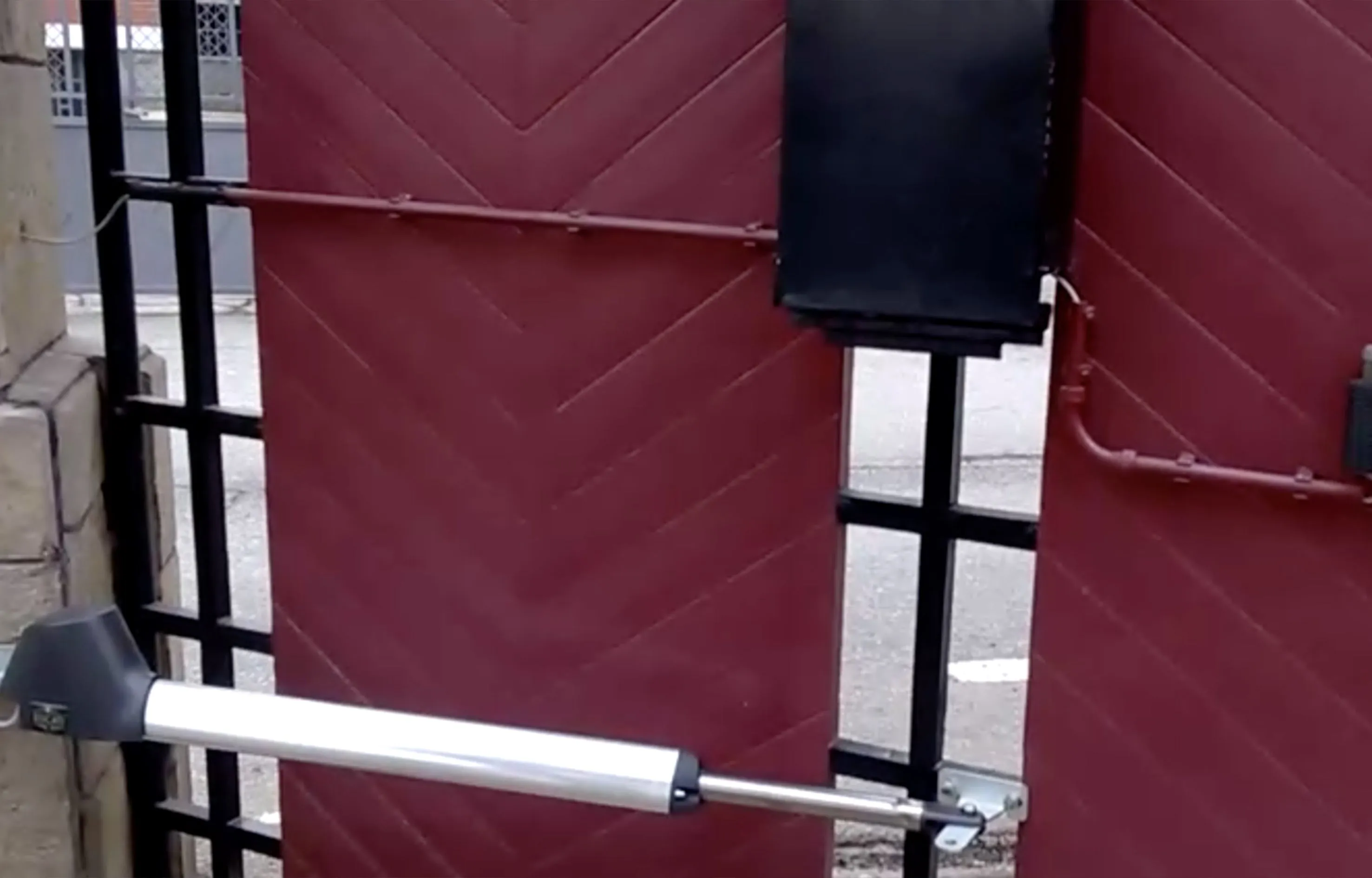

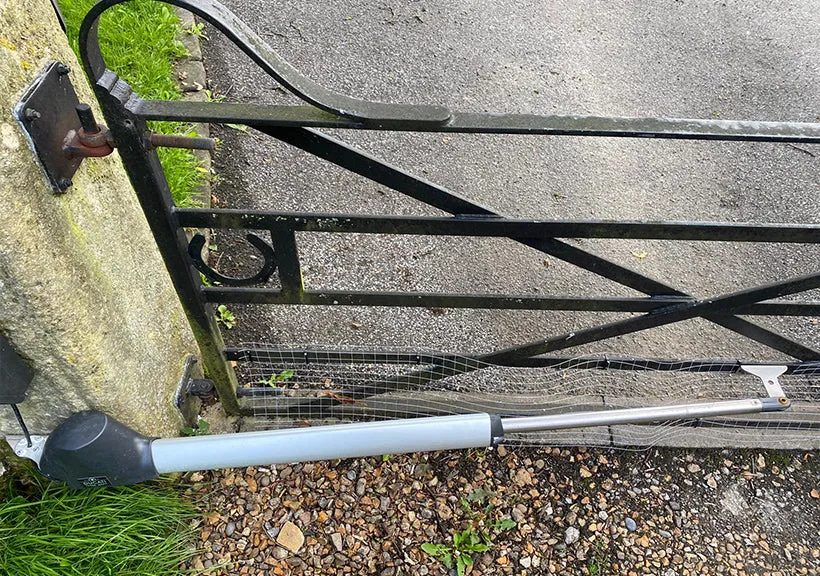

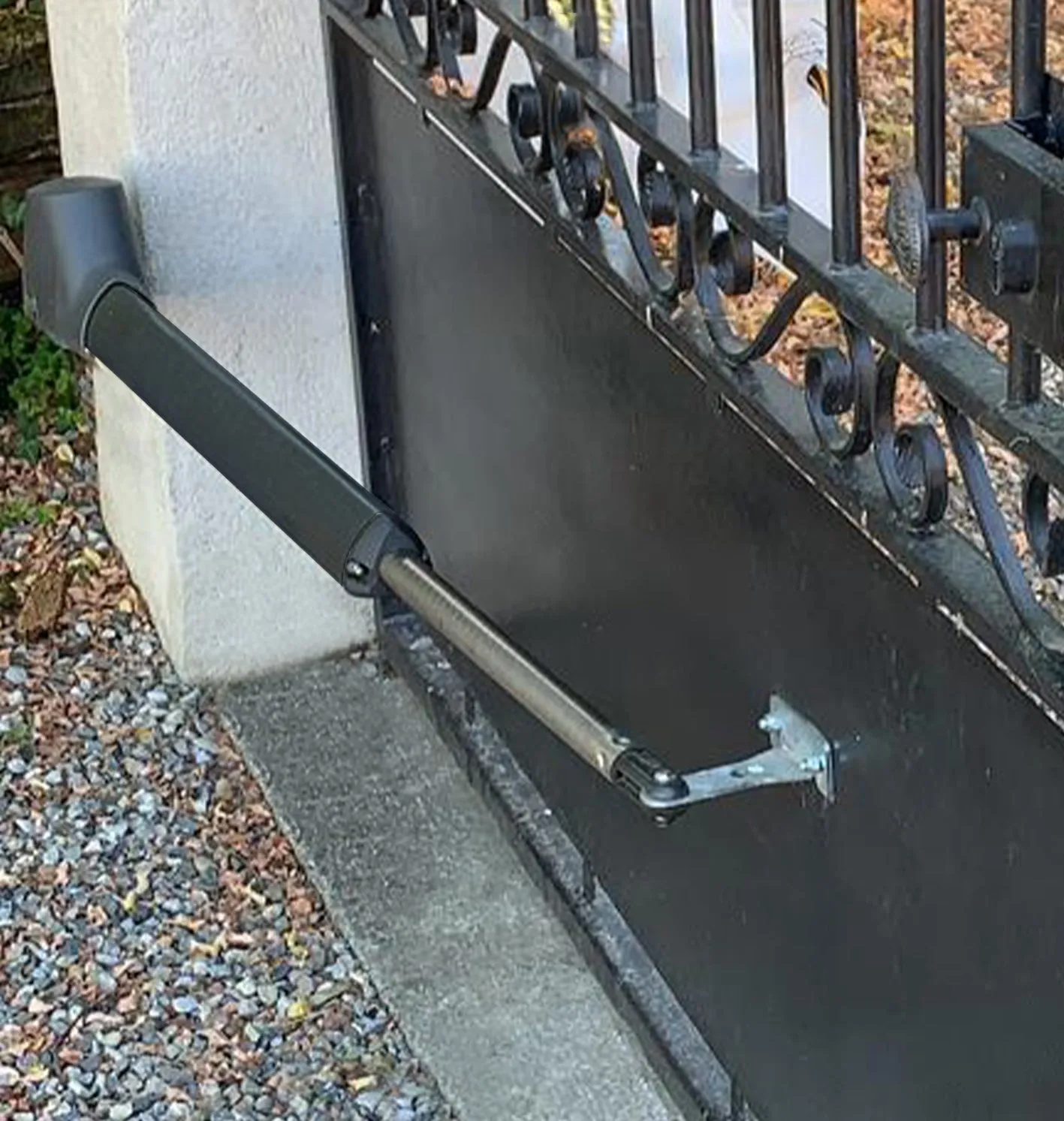

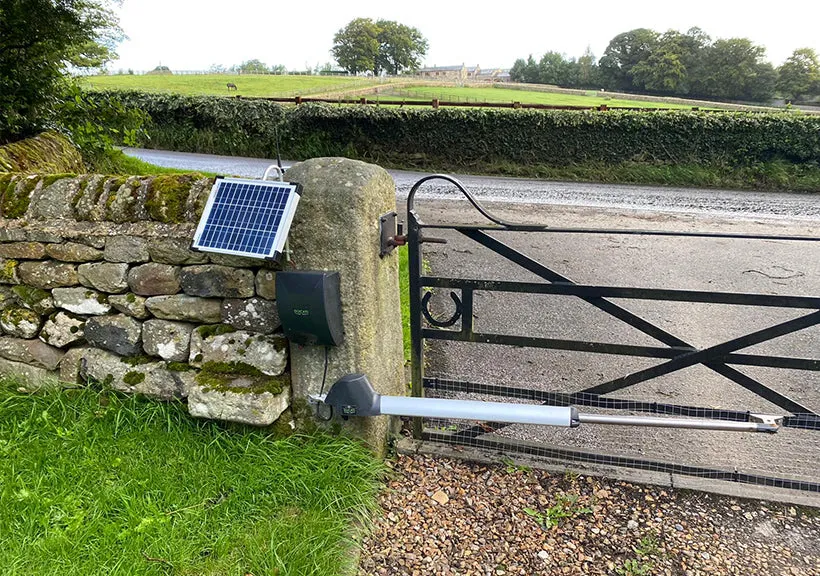

Actuator can be installed either on the right or on the left of the gate and can also open towards outside the property
Ideal for intensive use in any climate
The gate keeps automatically locked.The self-locking properties of the spindle increase the protection against a dangerous and un-autorised “pressing” of the gate and the otherwise necessary elecktrolocks for the final positions can be omitted but recommended for wing measuring over 2,8m

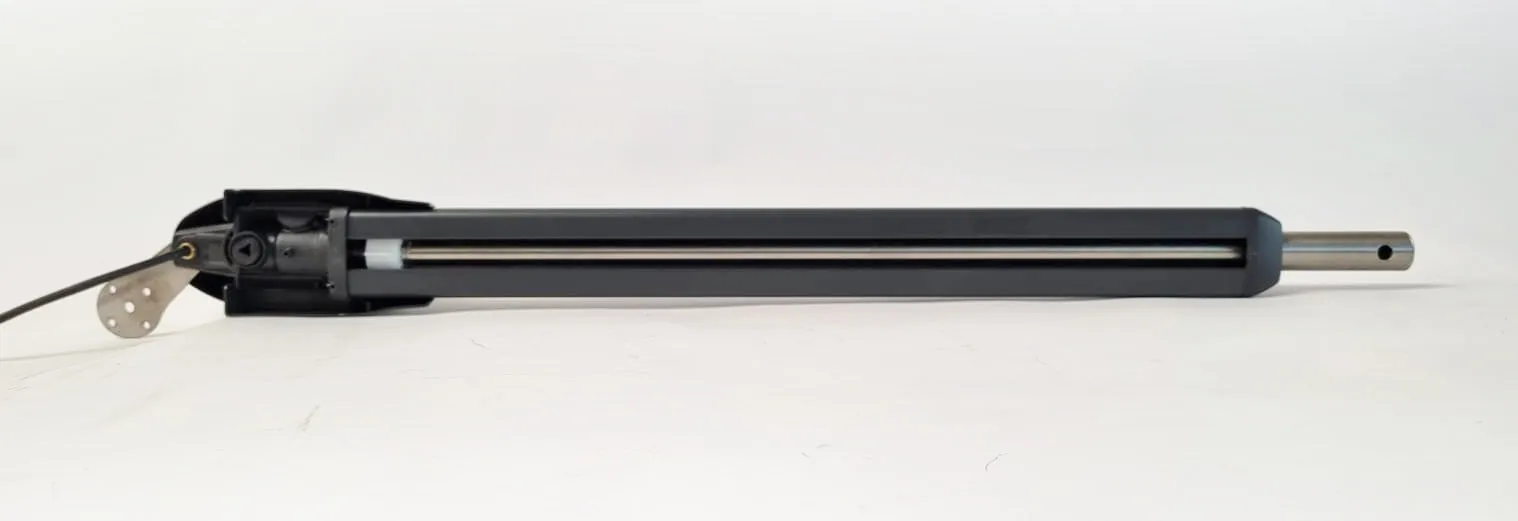

TELESCOPIC ELECROMECHANICAL ACTUATOR EVOT 700

Actuator made of durable materials. Each component is made in the ideal material to ensure quality , reliability in all weather conditions, long lasting performances and safety: our DC actuators ensures double electrical insulation

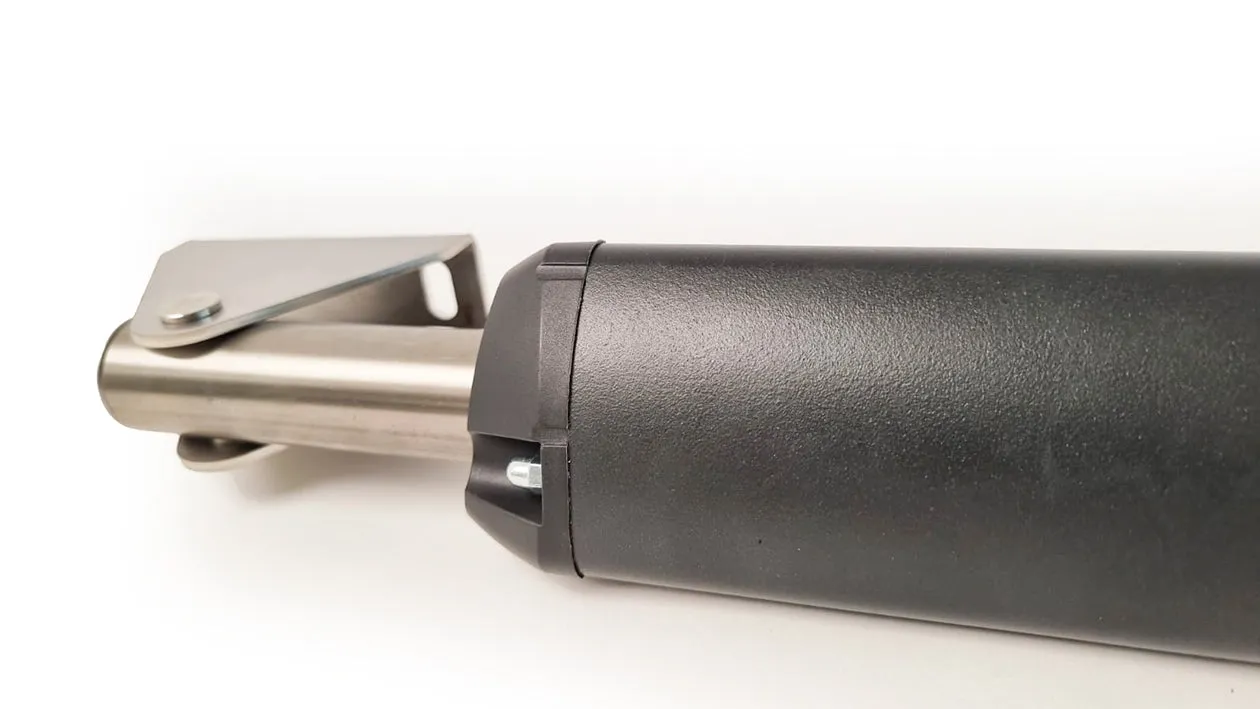

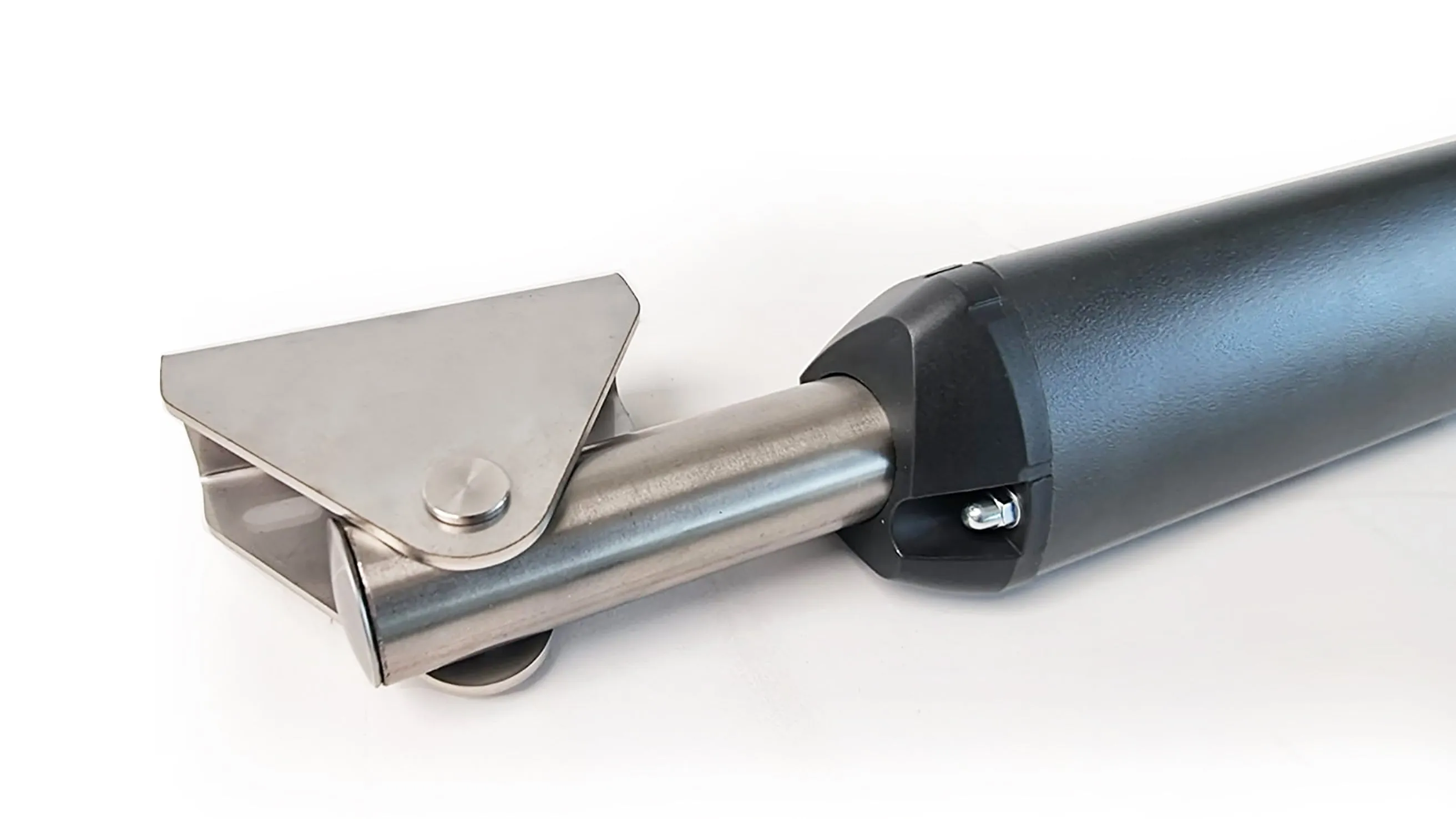

Stainless steel pipe AISI 304
PR80 steel 3 principles 20mm main screw
Sinterized gears
C40 steel worm screw machined and lapped by rolling machine
Rotor made with double insulated copper Class H 200°C
Extruded painted aluminium

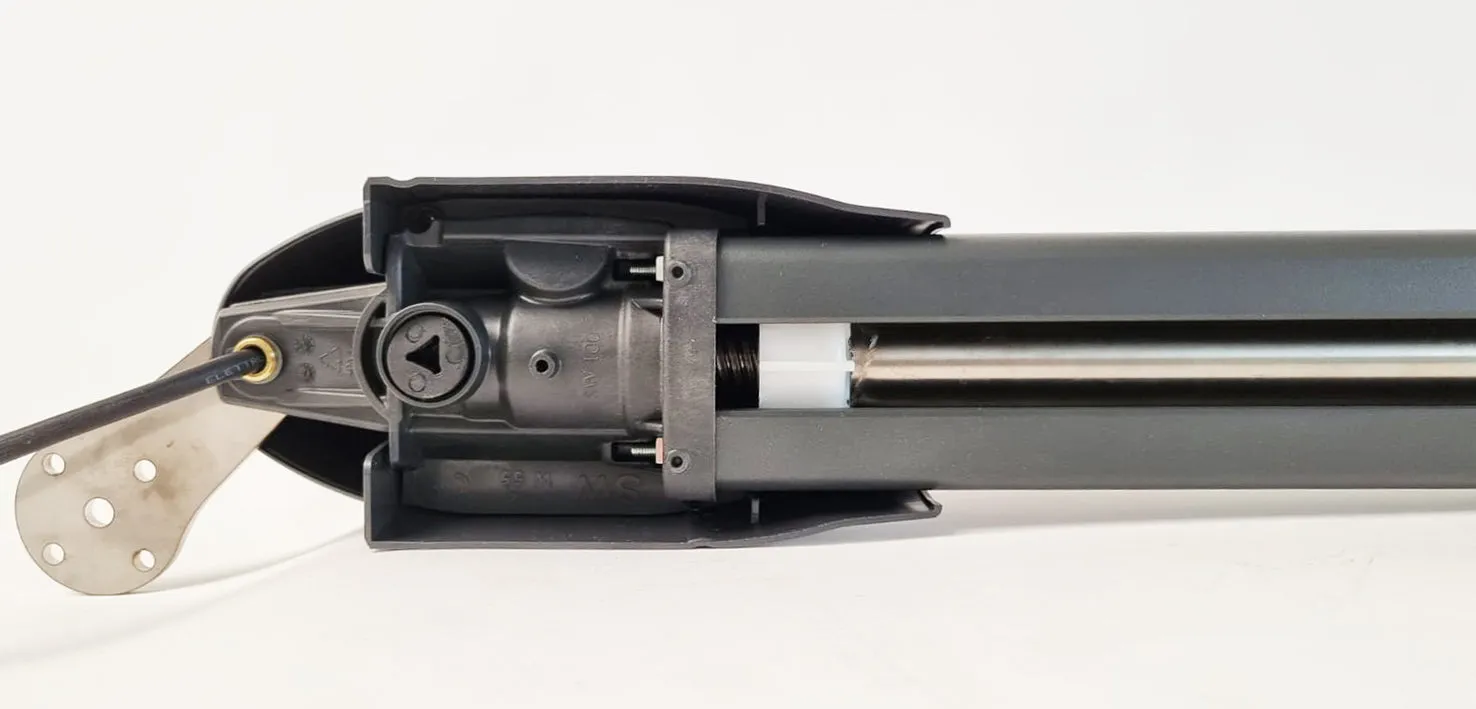

High strenght and double motor insulation: Nylon-glass integrated back fork guarantees double electrical insulation. Durable, withstands all weather conditions
Hostaform® three principles nut screw for a long lasting high-performance

Technical Data

Motor power supply (version 24V)	12V (24V)
dc motor (version 24V)	60W (120W)
max pushing & power (version 24V)	1200N (2400N)
Stroke	500mm
motor speed (version 24V)	1,5 cm/sec (2cm/sec)
telescopic actuator	√
working cycles limit	continuous use
working temperature	-20°C/ 50°C
max wing length	5m
max.wing weight (version 24V)	250kg
max. opening angle	137°
automatic wing lock	√ irreversible actuator
manual release system	√ by triangular key
Max "C" measure /pillar dimension (see pillar installation diagram on instruction manual) to install the actuator avoiding any masonry work on the pillar	28
Compatible with gate opening towards outside	√

NOTE:

the actuator will stop by amperometrical detection system: it therefore requires mechanical limits to be installed on the ground to stop the gate wing in the open and closed position. Special "FC" version are featured with on-board mechanical limits for the open wing position. Warning: a stopper fixed to the ground is still required for the closed position of the gate.
