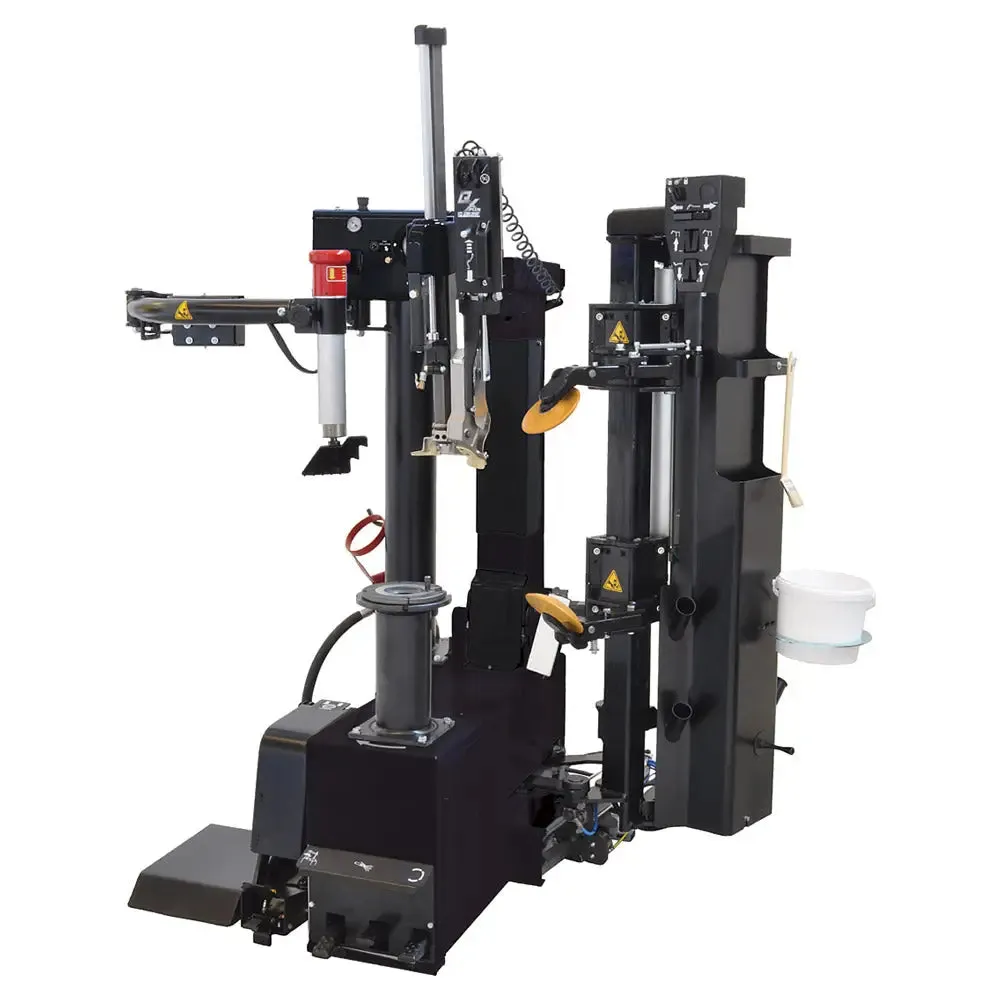

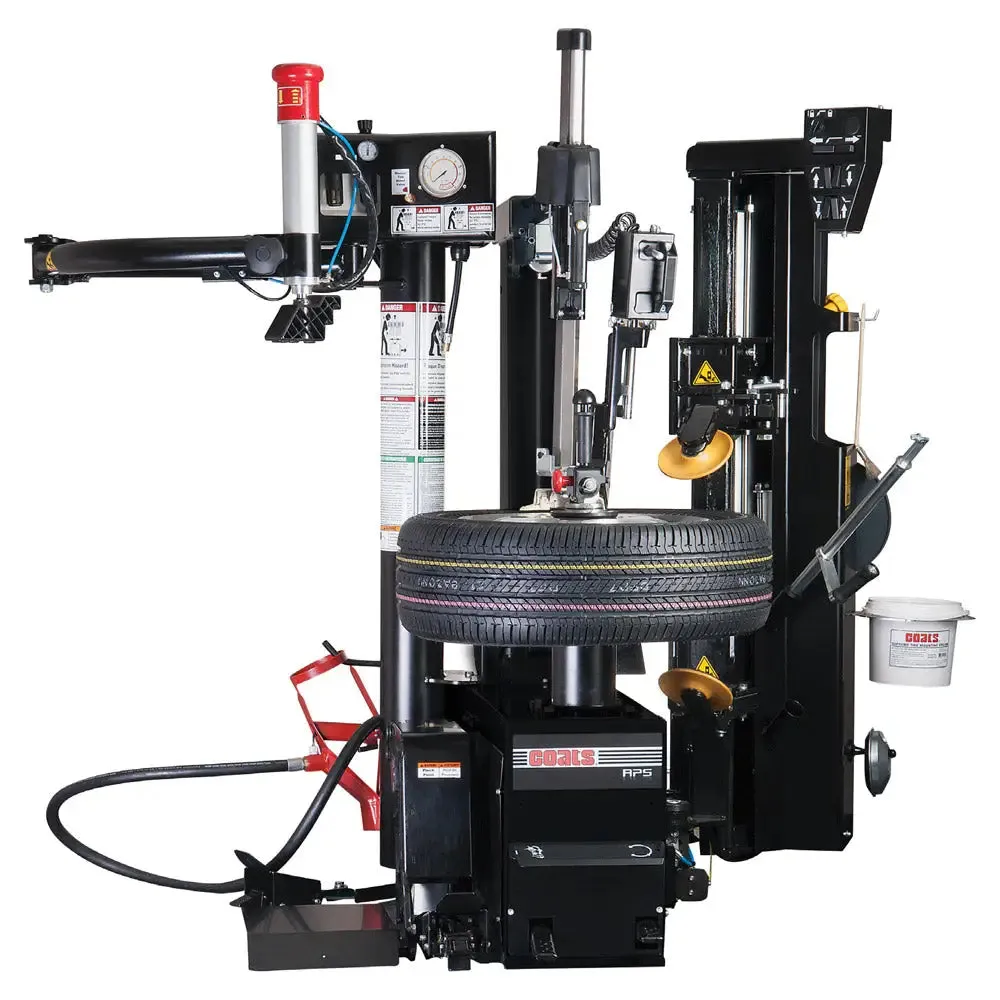

Coats APS tire changers share core elements with many of our other products, but we've added advanced innovation as you move up the line. That's why a Coats APS tire changer is ideal for changing difficult, expensive, or delicate wheels for your discerning customers.

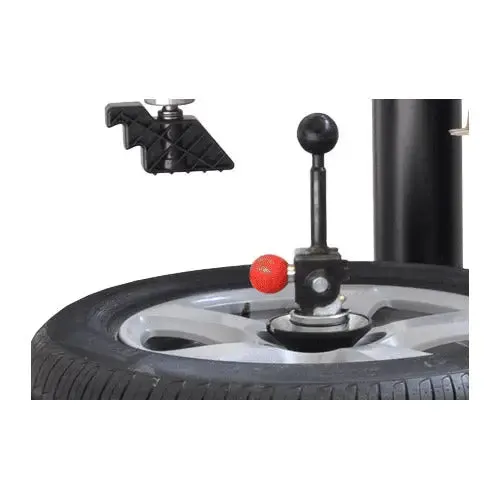

Leverless Duckhead Bead Lifter: This feature eliminates traditional tire tools that can mar the surface due to application difficulty.

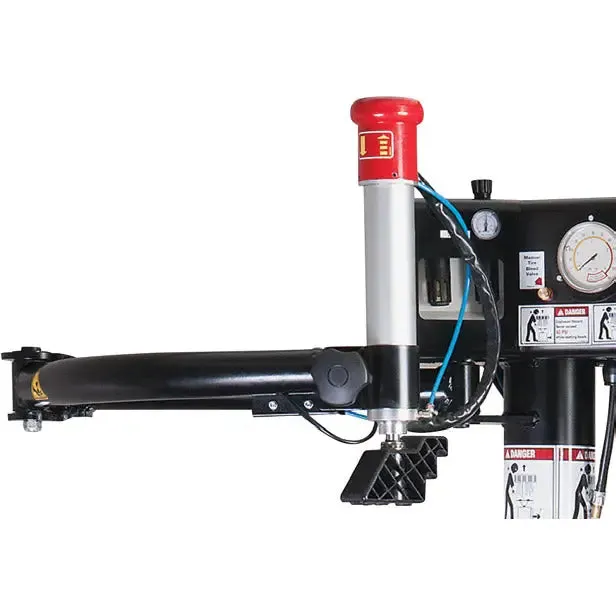

Robo-Arm Helper Device: The device assists in efficiently changing low-profile or run-flat tires.
Manual Locking System: Manual locking system allows for fast and easy wheel clamping.
Features:
- Auto-Retracting Robo-Arm swings back to the home position after use to stay out of the operator's way
- Leverless Duckhead automatically offsets away from the rim to minimize the risk of wheel damage
- Center Post Design with Smart Lock cam quickly locks wheels into place with minimal effort
- Individually-Operated Power Rollers provide easy bead loosening and assistance with mounting
- Integrated Wheel Lift reduces the risk of wheel damage and back strain on heavy assemblies
- Two-Speed Electric Motor helps you maximize shop efficiency based on application difficulty
Specs:
Wheel Handled: Custom or Specialty Wheels and Run-flat TiresMax Tire Diameter: 47in
Max Rim Width: 16in
Clamping Range: 12in - 34in
Bead Loosening System: Roller Disc
Wheel Clamping System: Manual
Mount/Demount Mechanism: Leverless/Tilt-back
Helper Devices: Robo-Arm®, Bead Loosener Disks
Bead Seating Air Volume: On Machine
Inflation Gauge: Standard
Air Supply Gauge: Standard
Operating Pressure: 115 - 145 psi
Power Supply: 230V, 50/60 Hz, 1 ph, 20amp

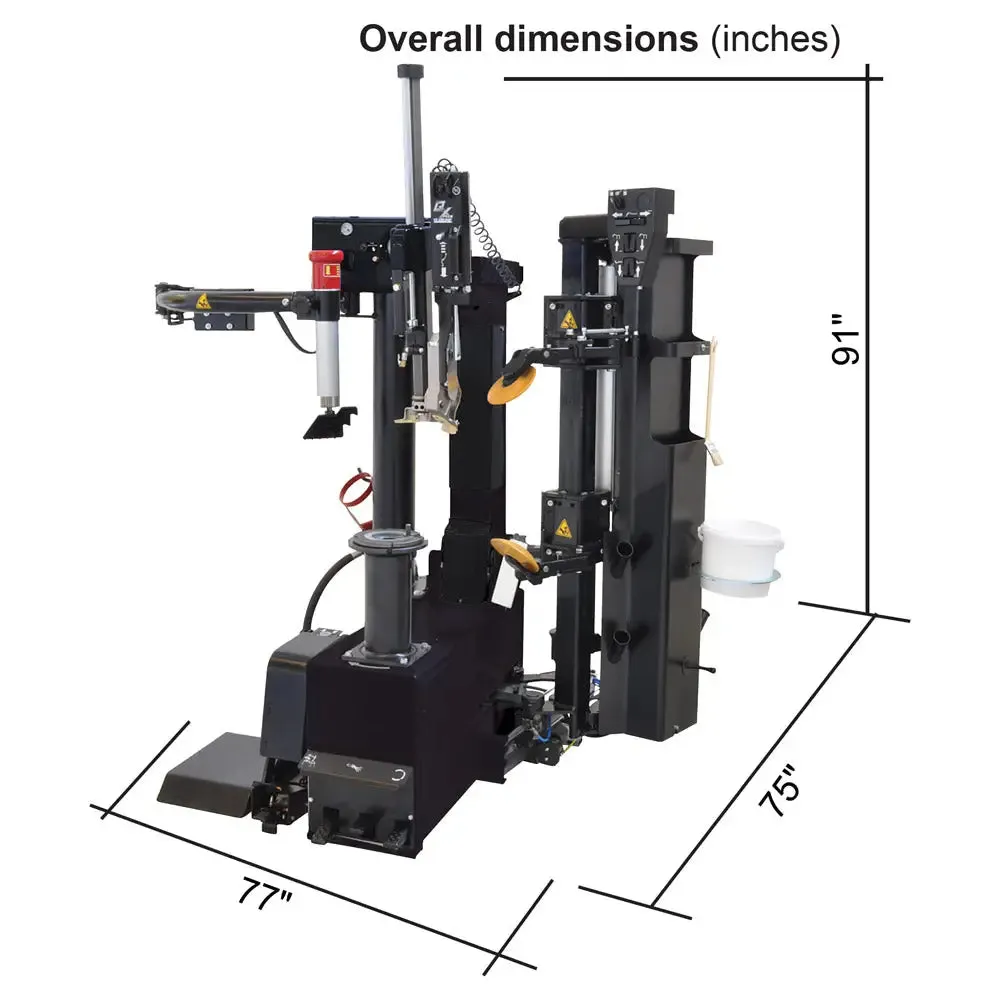

Dimensions: 90in H x 77in W x 75in D
Ship Weight: 940 lbs.
Includes:
1 x Wheel Lift1 x Inflation System
1 x Auxiliary Bead Sealer Kit
2 x 89231517 Table Top Pad
1 x 82041474 Adjustment Knob for Smart Lock
1 x 83040730 Plastic Cone (70mm)
2 x 89231516 Plastic Protectors for Smart Lock Centering Cone
1 x 83032133 Pin Extensions (Medium - 33mm)
2 x 83031335 Pin Extensions (Large - 72mm)
1 x 89231518 Positioning Pin Bootie
1 x 89237711 Manual Bead Depressor
3 x 89231515 Plastic Protectors for Mount/Demount Tool
1 x 8183710 Paste Lube Bucket
1 x 85000850 Paste Lube Brush
1 x 83032475 Light Truck Cone
1 x 89242832 Reverse Mount Adaptor
1 x 89231513 Light Truck Cone (140 - 220 mm center hole)
